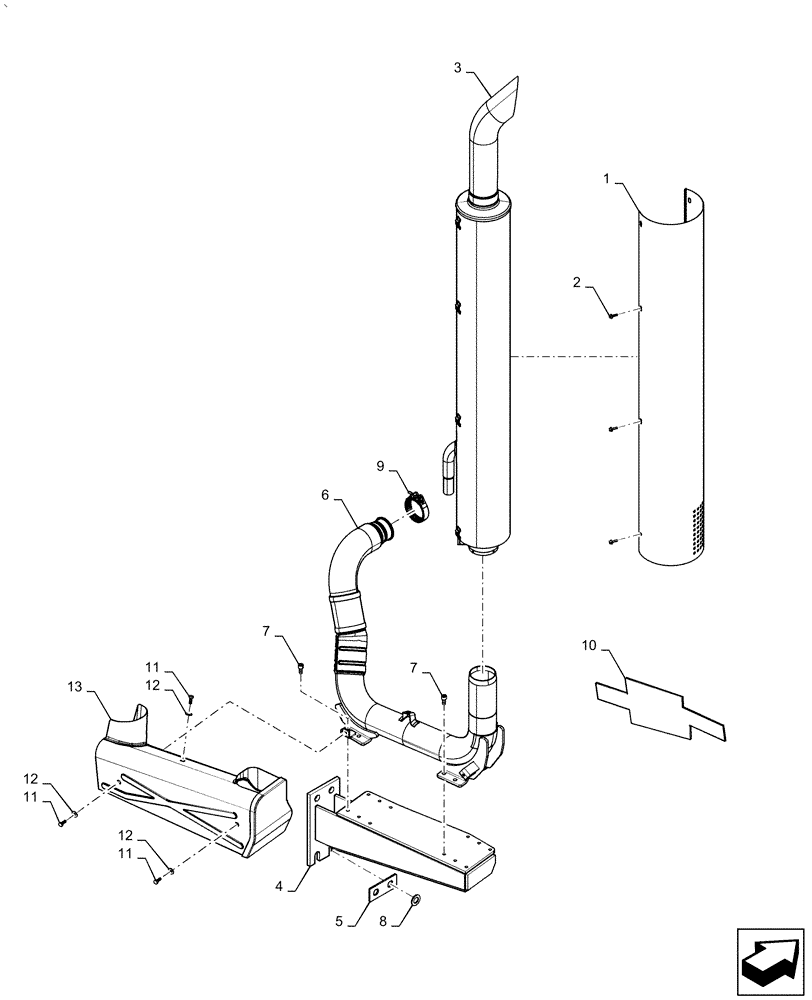

Запчасти Case IH PUMA 2304 (10.254.AI[01]) - EXHAUST MUFFLER (10) - ENGINE

1

47836958

Heat, Black

SHIELD

1шт.

2

86511442

BOLT,Hex Serr, M6 x 1 x 20mm

8шт.

3

47910603

Vertical

MUFFLER

1шт.

4

87568617

SUPPORT

Bracket Assy - LWB

1шт.

5

87569642

PLATE

1шт.

6

84551482

EXHAUST SYSTEM PIPE

1шт.

7

14432334

HEX SOC SCREW,M10 x 1.5 x 22mm, Cl 10.9, Full Thd

8шт.

8

82033948

CLAMP

Assy

1шт.

9

87524289

CLAMP,81mm

Assembly, Exhaust

1шт.

10

87590157

DEFLECTOR

Baffle - Exhaust Pipe Heat

1шт.

11

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

5шт.

12

12646704

WASHER,8.15mm ID x 20mm OD x 2mm Thk

5шт.

13

87591252

OUTER SHIELD

1шт.
