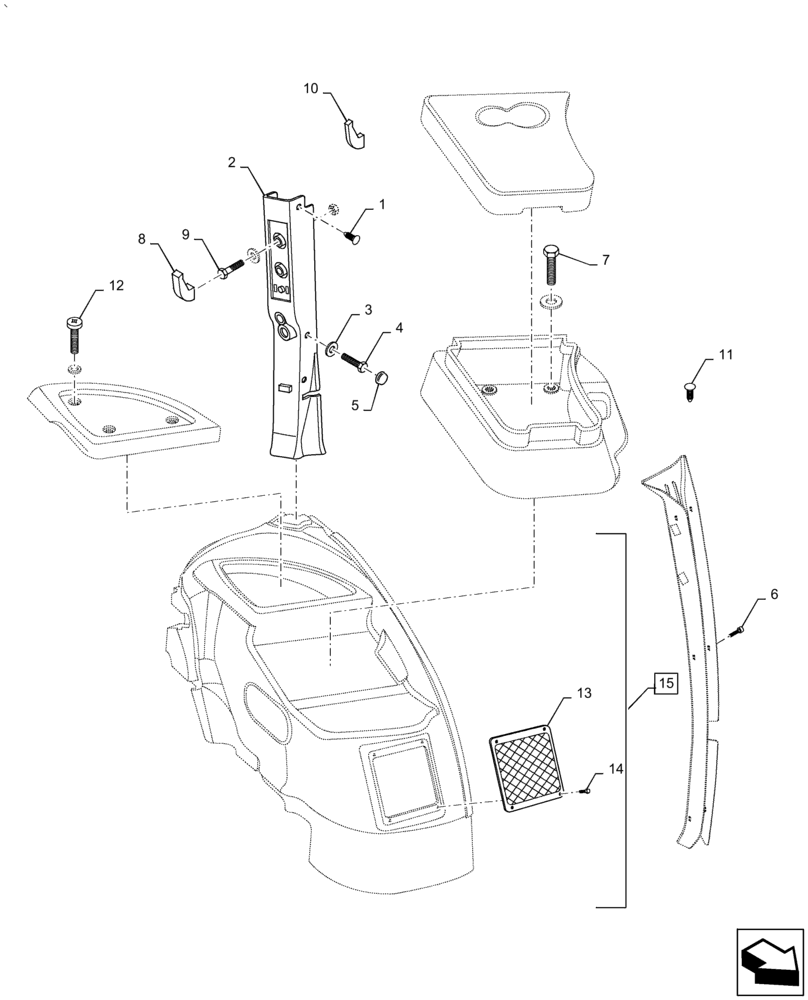

Запчасти Case IH PUMA 2304 (90.160.CF[01]) - COVER, CONTROL (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

82023460

STUD,M7.85 x 19.50mm, Plastic

4шт.

2

47382947

COVER

LH

1шт.

3

87734153

SPACER,10.6mm ID x 36mm OD x 7.5mm L

2шт.

4

11106021

BOLT,Hex, M10 x 1.5 x 20 mm, Cl 8.8, Full Thd

2шт.

5

82012814

CAP,M10

2шт.

6

82023482

ANCHOR,Button Hd, 8.25mm x 35.00mm

Retainer, Roof Trim Panel

8шт.

7

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

3шт.

8

82872313

COAT HOOK

1шт.

9

82880745

SCREW,Phillips Drive, Pan HD, M4 x 16mm, Cl 4.8

1шт.

10

83904461

RETAINER

1шт.

11

81870039

FASTENER,M8 x 1.5 x 22mm

2шт.

11

87539768

ANCHOR,Button Hd, 4.70 mm x 11.00 mm, Nylon

2шт.

12

84187810

SCREW,Torx Pan Hd, M8 x 16mm, Cl 8.8

3шт.

13

47476163

NET

1шт.

14

13271817

SCREW,Pozidriv Pan Hd, M4 x 8mm, Cl 5.8, Full Thd

4шт.

15

47411454

SOFT TRIM

Incl 1, 15, 16

1шт.
