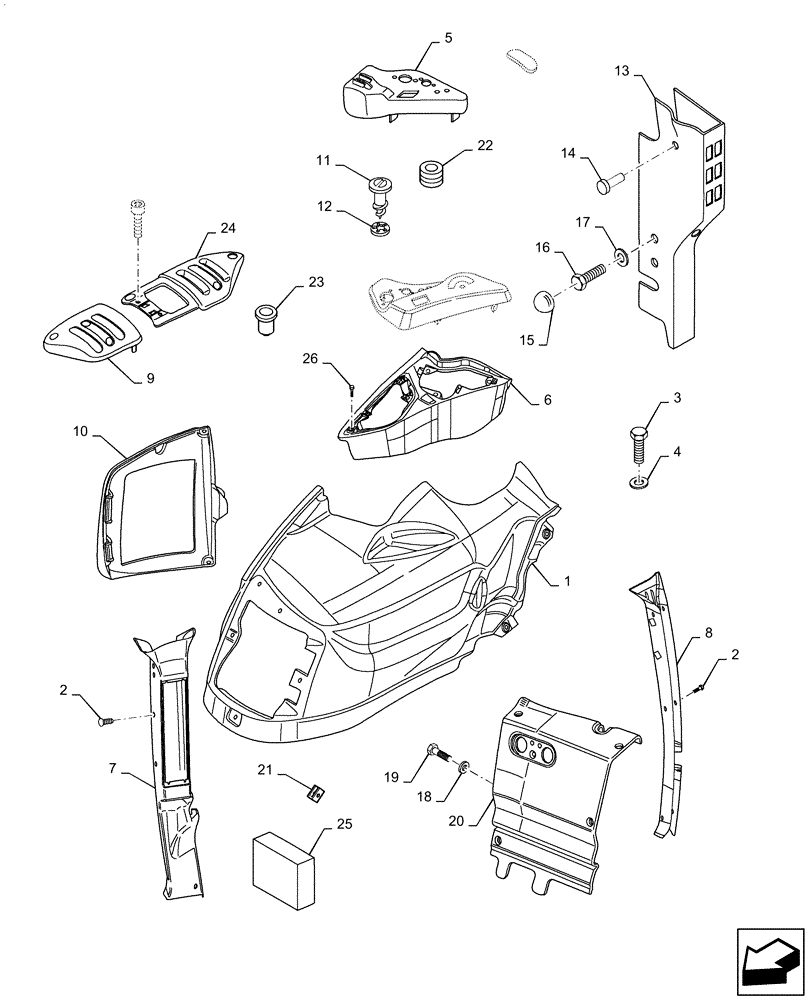

Запчасти Case IH PUMA 2304 (90.160.BY[02]) - CONTROL COVER (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84242733

PANEL

Assy - Body Side - RH - Case

1шт.

2

82023482

ANCHOR,Button Hd, 8.25mm x 35.00mm

Retainer Roof Trim Panel

2шт.

3

15647001

SELF-TAP SCREW,Pozidriv Pan Hd, M12 x 19mm

2шт.

4

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

2шт.

5

84315935

COVER

PTO Pod - Mechanical - Case

1шт.

6

47767713

COVER

Assy - Mechanical Remotes - RH - Case

1шт.

7

84364974

PADDING

Cover Pillar RH Trim

1шт.

8

84599513

COVER

Cover LH C Pillar Case

1шт.

9

84190826

BEZEL

Mechanical Remotes 1 and 2 - Case

1шт.

10

87734672

COVER

Assy - Fuse and Relay - Carrier - Case

1шт.

11

84193550

FASTENER,Black

Carrier Door - Black

2шт.

12

87734456

RETAINER,13mm OD x 0.8mm Thk

Carrier Door

2шт.

13

47382947

COVER

C Pillar-RH

1шт.

14

82023460

STUD,M7.85 x 19.50mm, Plastic

Fastener

4шт.

15

82012814

CAP,M10

2шт.

16

11106021

BOLT,Hex, M10 x 1.5 x 20 mm, Cl 8.8, Full Thd

2шт.

17

87734153

SPACER,10.6mm ID x 36mm OD x 7.5mm L

Hinge Pillar Trim Retaining

2шт.

18

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

4шт.

19

84187813

SCREW,Tap, Torx Pan Hd, M5.5 x 1.8 x 16mm

4шт.

20

84213367

PANEL

Electronics Module - Case

1шт.

21

87567755

SPRING NUT,M5

2шт.

22

83908579

PLUG,M7.62

Grommet - Roof

3шт.

23

81862738

PLUG,M38 x 28 x 5mm

2шт.

24

84190828

BEZEL

Mechanical Controller 3 and 4 - Case

1шт.

25

47602297

Less Iso Bus

BLOCK

1шт.

26

10558728

SCREW,Flat Hd W/Collar, M6 x 22mm, Cl 8.8

4шт.
