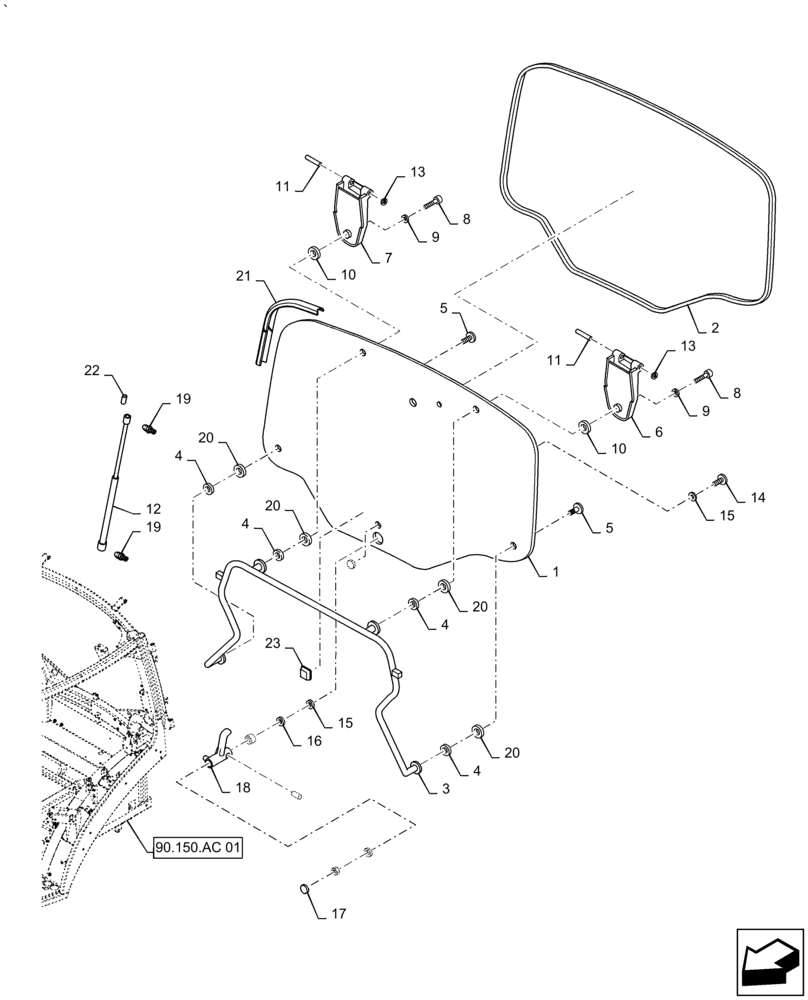

Запчасти Case IH PUMA 2304 (90.156.AD) - REAR WINDOW AND RELATED PARTS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87744542

GLASS

1шт.

2

82027998

WEATHERSTRIP,4125mm L

1шт.

3

82030829

HANDLE

1шт.

4

81868323

SEALING WASHER,8.1mm ID x 36mm OD x 5.3mm Thk

4шт.

5

198916A2

CAP,M8 x 20, Black

Door with Foam

2шт.

6

82034267

HINGE

LH

1шт.

7

82034266

HINGE

RH

1шт.

8

15213321

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

2шт.

9

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

10

82022441

SHIM,22mm ID x 59.5mm OD x 2mm Thk

2шт.

11

82033133

PIN,17mm OD x 96mm L

2шт.

12

82022486

GAS STRUT,486mm Extended, 286mm Compressed

2шт.

13

11088171

SNAP RING,M11

2шт.

14

47464541

BOLT,M12 x 1.75 x 57mm

1шт.

15

81865223

SEALING WASHER,12.8mm ID x 36mm OD x 6.5mm Thk

2шт.

16

83995286

SEALING WASHER,M12.5 x 35 x 3 Thk

1шт.

17

83961986

PLUG,30mm

1шт.

18

87541759

HANDLE

1шт.

19

83952214

BALL STUD,M8 x 29.5mm OAL

Pin

4шт.

20

44995003

SEALING WASHER,20.0mm ID x 60.0mm OD x 3.0mm Thk

4шт.

21

82034552

RUBBER SEAL,1235mm L

Window

1шт.

22

82019395

SEAL

1шт.

23

84390533

RUBBER BLOCK,19.8mm L x 19.8mm W x 6.4mm Thk

1шт.
