(90.151.AG[02]) - ARMREST CONTROL UNIT, COVER

Запчасти Case IH PUMA 2304 (90.151.AG[02]) - ARMREST CONTROL UNIT, COVER (90) - PLATFORM, CAB, BODYWORK AND DECALS

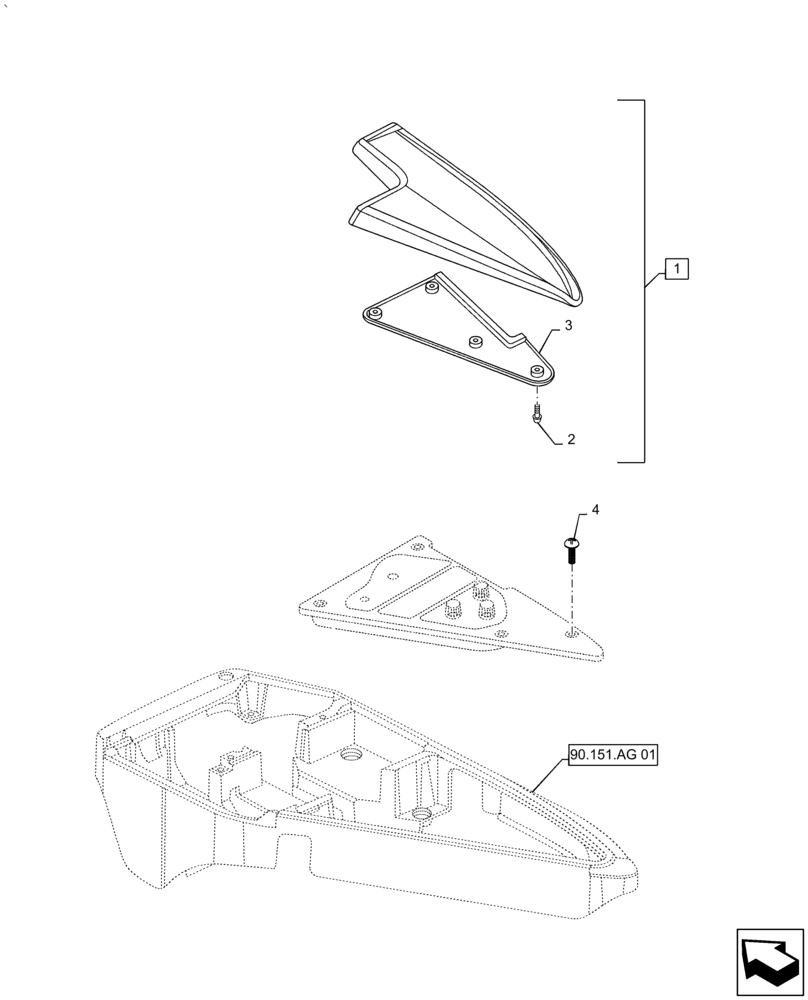

Схема запчастей Case IH PUMA 2304 - (90.151.AG[02]) - ARMREST CONTROL UNIT, COVER (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.151.ag 01
1
4
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87495096

CUSHION

Armrest, Incl 2, 3

1шт.

2

13272017

SCREW,Pozidriv Pan Hd, M4 x 12mm

4шт.

3

87486097

PANEL

Cushion Undercover

1шт.

4

15903977

SELF-TAP SCREW,Pan Head, M4.8 x 1.6 x 19mm

4шт.

Выбрано товаров: 4
