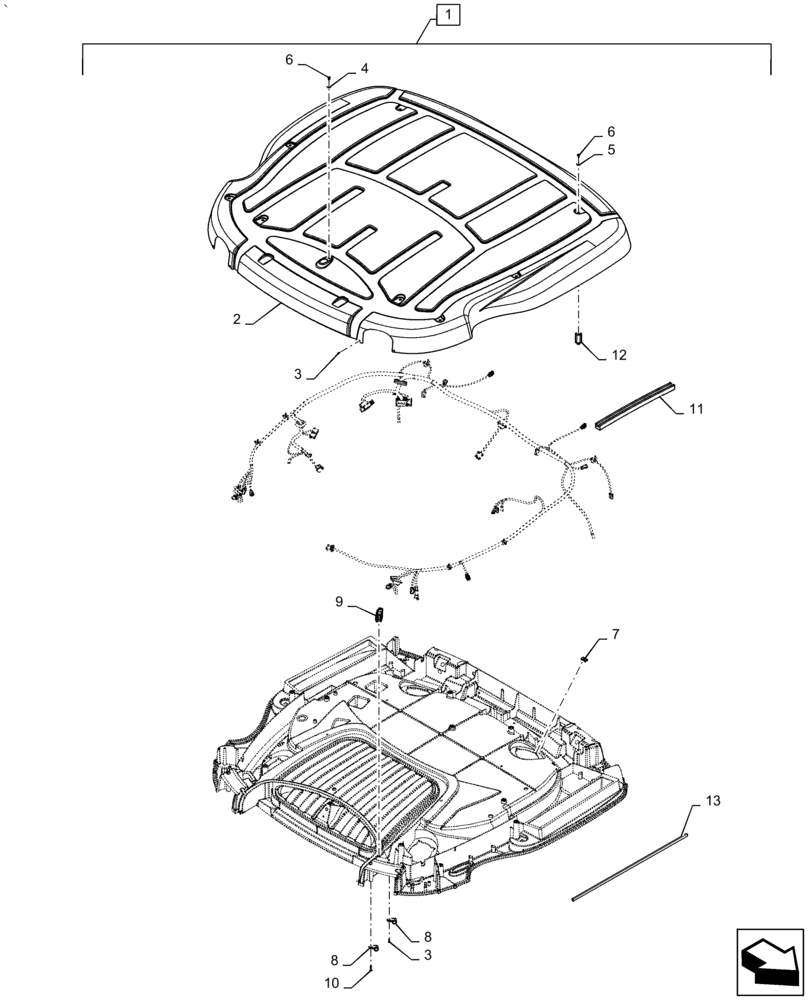

Запчасти Case IH PUMA 2304 (90.150.BG[01]) - EEAA ROOF WITH HIGH PROFILE LESS HIGH VISIBILITY PANEL - ROOF (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47467350

ROOF

Iso, Red, Less High Visibility Window, Incl 2 - 13

1шт.

2

84316054

ROOF

Iso, Less High Visibility Window

1шт.

3

82034112

SELF-TAP SCREW,Pan, M3 x 10mm

11шт.

4

12647607

WASHER,6.15mm ID x 16mm OD x 2mm Thk

1шт.

5

82037891

SEALING WASHER,6mm ID x 19mmOD x 1.5mm Thk

1шт.

6

83998908

SCREW,Pozidriv Pan Hd, M6 x 12mm, Cl 4.8, Full Thd

9шт.

7

81872135

NUT,Retaining, M4.20

16шт.

8

87343422

CLAMP

2шт.

9

87537655

GROMMET,14mm ID x 36mm OD, Rubber, Black

Wire

1шт.

10

82034113

SELF-TAP SCREW,Torx, Round HD, M5 x 3 x 25mm

1шт.

11

82035600

GASKET

Outer Roof

2шт.

12

82034114

SPACER,M6 x 25mm L

8шт.

13

47467341

SEAL,30mm W x 15mm Thk x 5000mm L

Roof

1шт.
