Запчасти Case IH PUMA 2304 (90.116.AC) - REAR FENDER (90) - PLATFORM, CAB, BODYWORK AND DECALS

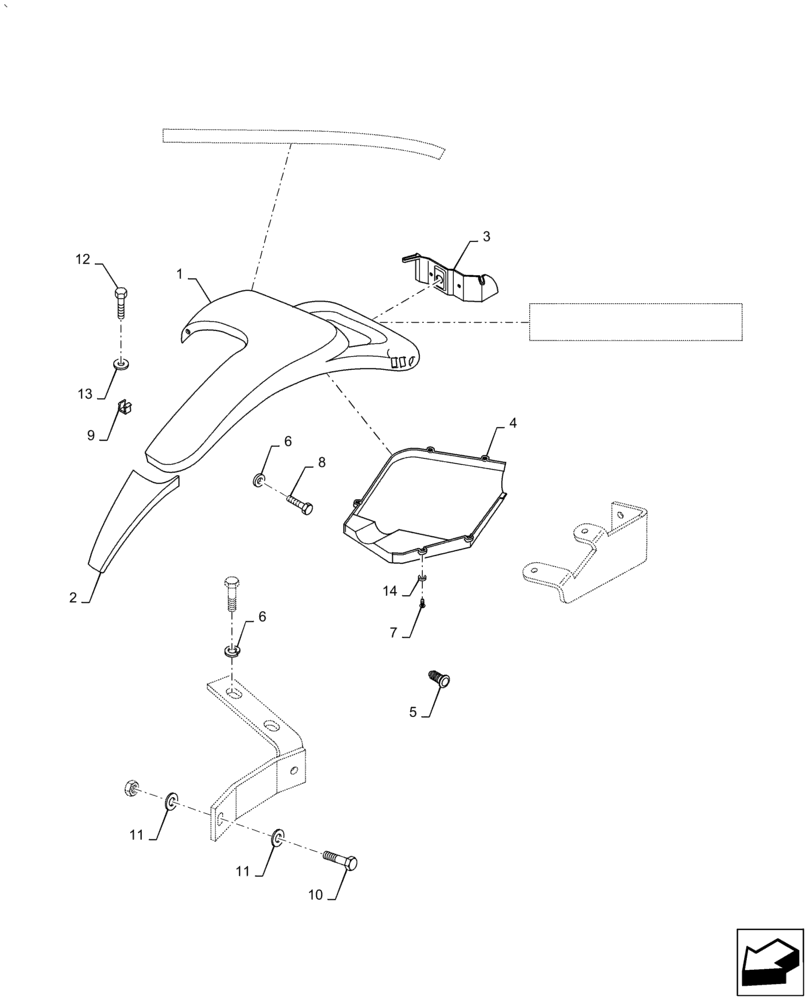

Схема запчастей Case IH PUMA 2304 - (90.116.AC) - REAR FENDER (90) - PLATFORM, CAB, BODYWORK AND DECALS
6
11
13
12
6
10
14
5
3
4
11
1
9
2
8
7

Артикул

Название

Примечание

Количество

1

87554853

REAR FENDER

Narrow, LH

1шт.

1

87554854

REAR FENDER

Narrow, RH

1шт.

2

82038501

REAR FENDER

Infill Panel, LH

1шт.

2

82038500

REAR FENDER

Infill Panel, RH

1шт.

3

84511195

COVER

1шт.

3

84511198

COVER

1шт.

4

47550809

SUPPORT

1шт.

4

47550810

SUPPORT

1шт.

5

81870039

FASTENER,M8 x 1.5 x 22mm

4шт.

6

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

18шт.

7

87352109

SCREW,Phillips Drive, Pan HD, M10 x 50mm

20шт.

8

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

11шт.

9

82010838

SPRING CLIP,0.5mm Thk

6шт.

10

84187823

SCREW,Torx, Pan HD, M6 x 25mm, Cl 4.8

2шт.

11

84188433

WASHER,6.15mm ID x 18mm OD x 2mm Thk

4шт.

12

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

12

16043824

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd, DAC

2шт.

13

12628901

WASHER,8.15mm ID x 25mm OD x 4mm Thk

2шт.

14

12638104

WASHER,5.2mm ID x 14mm OD x 1mm Thk

12шт.

Выбрано товаров: 19
