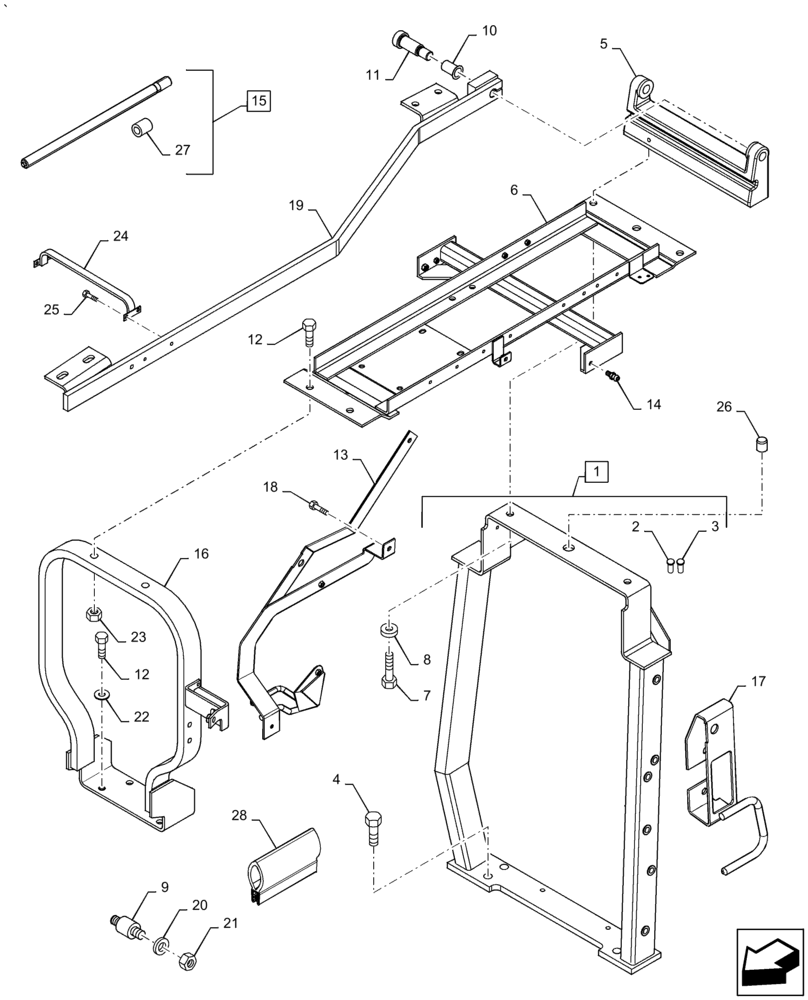

Запчасти Case IH PUMA 2304 (90.102.AD) - HOOD, SUPPORT (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47723847

SUPPORT

1шт.

2

15629111

RIVET,Flat, M8 OD x 17.5mm L

7шт.

3

15628511

RIVET,Flat, M6 OD x 16mm L

4шт.

4

11106221

SCREW,Hex, M10 x 25mm, Cl 8.8, Full Thd

4шт.

5

82036797

HINGE

1шт.

6

84154235

CONSOLE

1шт.

7

86508583

BOLT,Hex, M16 x 35mm, Cl 8.8, Full Thd

2шт.

8

86511326

WASHER,17mm ID x 30mm OD x 3mm Thk

2шт.

9

82039047

ISOLATOR

6шт.

10

89846307

NYLON BEARING,.626" ID x .937" OD x 1.155" L

2шт.

11

89845583

BOLT,Hex, 26.05mm ID x 50.8mm L

2шт.

12

11106021

BOLT,Hex, M10 x 1.5 x 20 mm, Cl 8.8, Full Thd

6шт.

13

87473441

SUPPORT

RH

1шт.

14

83952214

BALL STUD,M8 x 29.5mm OAL

Pin

4шт.

15

82037390

GAS STRUT

2шт.

16

87655863

SUPPORT

1шт.

17

84290295

SUPPORT

1шт.

18

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

19

87580064

SUPPORT

RH

1шт.

19

87580065

SUPPORT

LH

1шт.

20

10519401

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

6шт.

21

9706755

NUT,M6, Cl 8

6шт.

22

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

4шт.

23

100016

NUT,M10 x 1.5, Cl 8

8шт.

24

87571385

REINFORCEMENT

1шт.

25

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

4шт.

26

82006056

PIN,16mm OD x 40mm L

1шт.

27

82019394

SEAL

1шт.

28

87624534

SEAL

2шт.
