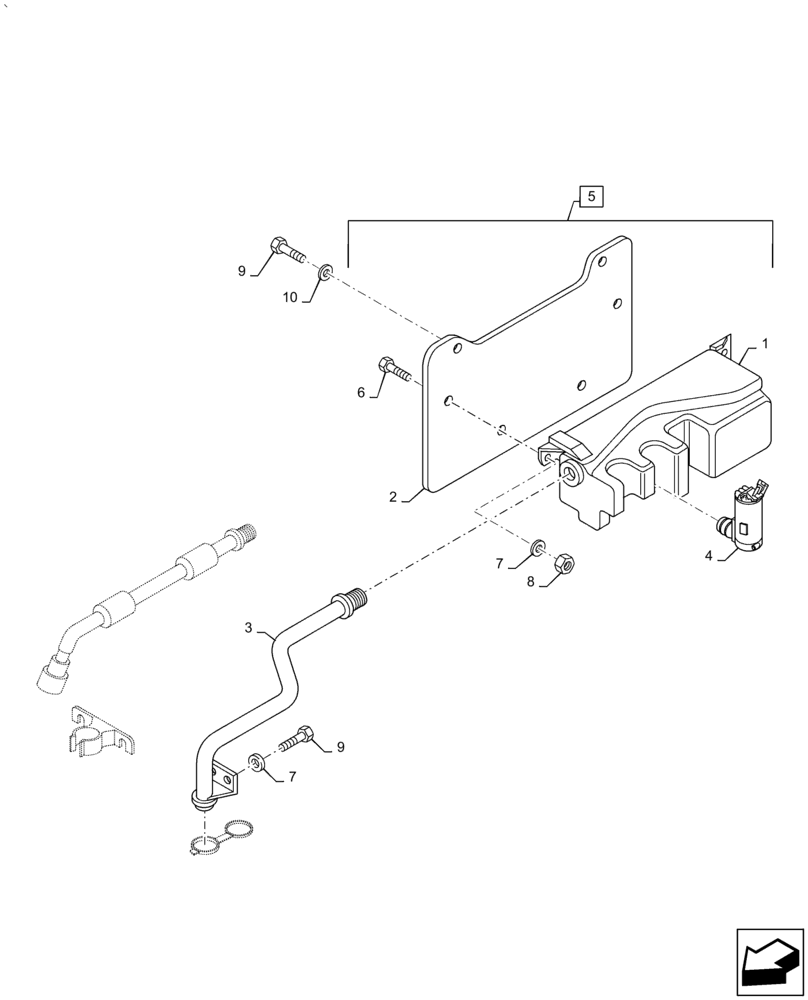

Запчасти Case IH PUMA 2304 (55.518.AT) - WINDSHIELD WIPER TANK (55) - ELECTRICAL SYSTEMS

1

82030995

RESERVOIR, WINDSHIEL

1шт.

2

87638111

PLATE

1шт.

3

82030997

TUBE

1шт.

4

84420264

PUMP,12V

2шт.

5

87638112

RESERVOIR, WINDSHIEL

1шт.

6

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

7

12646701

WASHER,8.15mm ID x 20mm OD x 2mm Thk

4шт.

8

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

2шт.

9

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

6шт.

10

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.
