Запчасти Case IH PUMA 2304 (55.512.CQ) - SEAT CABLES AND RELATED PARTS (55) - ELECTRICAL SYSTEMS

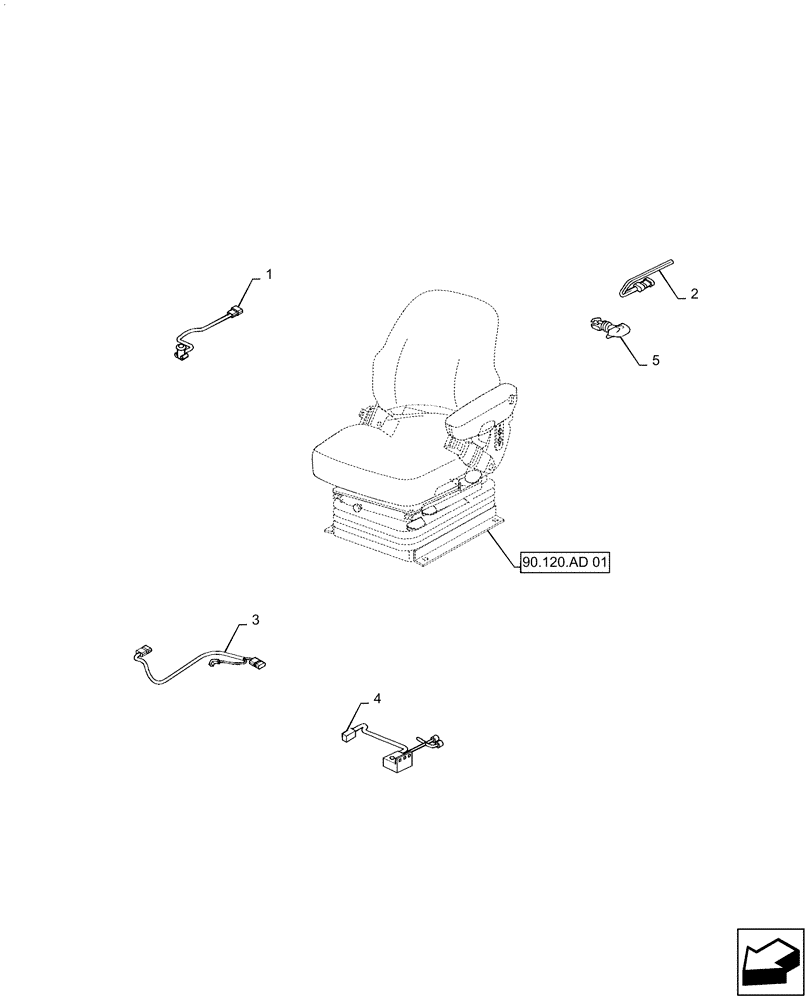

Схема запчастей Case IH PUMA 2304 - (55.512.CQ) - SEAT CABLES AND RELATED PARTS (55) - ELECTRICAL SYSTEMS
3
2
5
90.120.ad 01
1
4

Артикул

Название

Примечание

Количество

1

87529796

SWITCH

Operator Presence Switch

1шт.

2

87529791

HARNESS

Std Service Kit

1шт.

3

NSS

NOT SOLD SEPARAT

Semi Active Susp. Service Kit

1шт.

Deluxe Seat with Belts, Heated Cushion and Semi Active Suspension, VAR.319-679

1шт.

4

NSS

NOT SOLD SEPARAT

Semi Active Susp. Control

1шт.

Deluxe Seat with Belts, Heated Cushion and Semi Active Suspension, VAR.319-679

1шт.

5

82020825

VALVE

1шт.

Выбрано товаров: 7
