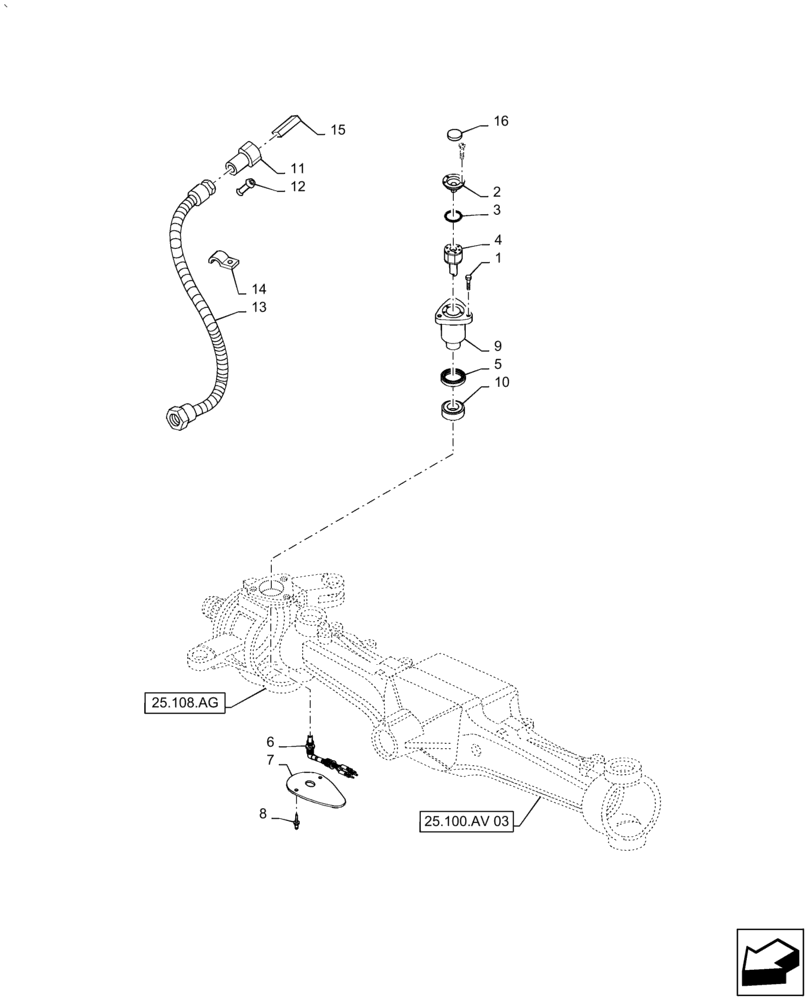

Запчасти Case IH PUMA 2304 (55.047.AA) - FRONT AXLE STEERING SENSOR AND RELATED PARTS (55) - ELECTRICAL SYSTEMS

1

14254434

SCREW,Hex, M14 x 1.5 x 30mm, Cl 10.9, Full Thd

12шт.

2

84384510

TOP

1шт.

3

14458280

O-RING,31.42mm ID x 2.62mm

1шт.

4

87627614

SENSOR

Steering

1шт.

5

47137701

SEAL,70mm ID x 90mm OD x 10mm Thk

1шт.

6

87627624

ELEC CONNECTOR,Male

1шт.

7

87315098

SHIELD

1шт.

8

14641591

RIVET,Pop, Truss Hd, M3.20 x 12mm, AL, PLN

2шт.

9

87345372

BALL STUD

Pin

1шт.

10

47137676

SPH ROLLER BEARING,40mm ID x 80mm OD x 24.75mm W

1шт.

11

82918426

ELEC CONNECTOR,Female

1шт.

12

82918419

PLUG

1шт.

13

82016109

FLEXIBLE SHEATH

1шт.

14

10441490

COLLAR,14mm, Coat, 7mm Bolt Hole, P Type

1шт.

15

82918451

SPACER

1шт.

16

14326211

PLUG,M22 x 1.50, R50, ZND

Front Axle with Active Suspension, VAR.212-463

1шт.
