(55.020.AF[01]) - GEARBOX HOUSING SENSOR, SWITCH

Запчасти Case IH PUMA 2304 (55.020.AF[01]) - GEARBOX HOUSING SENSOR, SWITCH (55) - ELECTRICAL SYSTEMS

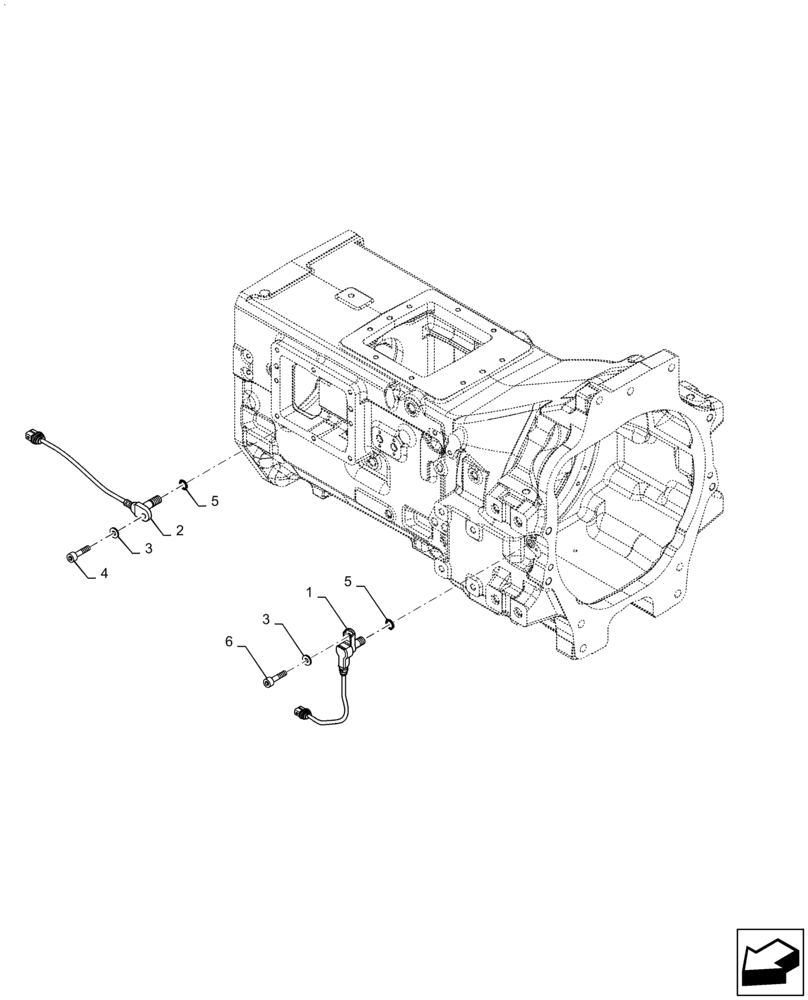

Схема запчастей Case IH PUMA 2304 - (55.020.AF[01]) - GEARBOX HOUSING SENSOR, SWITCH (55) - ELECTRICAL SYSTEMS
5
3
4
1
5
3
6
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84169162

SENSOR

Speed, Hall Effect, Rotational

1шт.

2

87564761

SENSOR

Inductive Speed

1шт.

3

12601274

WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, DAC

2шт.

4

10977624

BOLT,Hex, M5 x 12mm, Cl 8.8, Full Thd

1шт.

5

47136259

O-RING,3mm Thk x 17.2mm ID, 72 Duro

2шт.

6

14305720

HEX SOC SCREW,M6 x 14mm, Cl 8.8, Full Thd

1шт.

Выбрано товаров: 6
