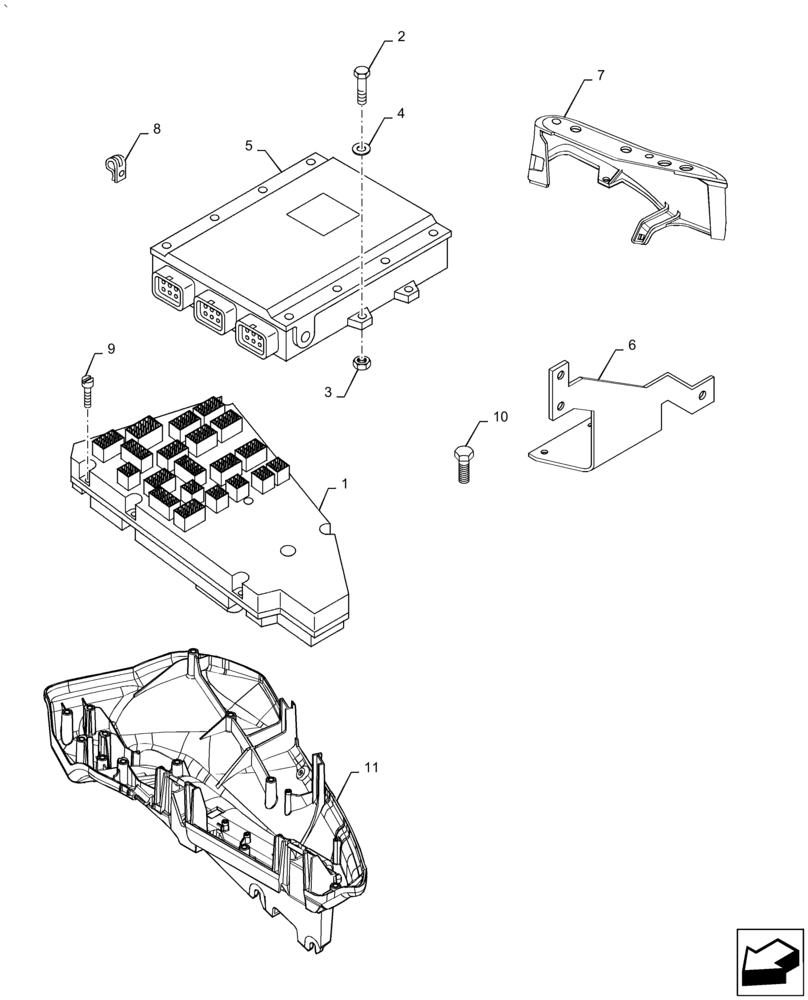

Запчасти Case IH PUMA 2304 (55.015.AA[02]) - ELECTRONIC CONTROL UNIT (55) - ELECTRICAL SYSTEMS

1

47443335

MODULE

1шт.

2

83964105

SCREW,Pan HD, M5 x 16mm

3шт.

3

15896411

NUT,Hex, M5, 4.70mm High, Cl 8

3шт.

4

14496301

WASHER,5.3mm ID x 10mm OD x 1mm Thk

3шт.

5

84225083

ECU

1шт.

84225083R

REMAN ELECT CONTROL

Reman ECU

1шт.

84225083C

CORE-ELECTRONIC CONT

Return Number

1шт.

6

87606848

SUPPORT

1шт.

7

84216544

HOUSING

1шт.

8

14369071

SPRING NUT,4.8mm x 14.6mm x 4mm

1шт.

9

86599775

SCREW,M3 x 0.5 x 14.4mm OAL, Cl 4.8

9шт.

10

15903977

SELF-TAP SCREW,Pan Head, M4.8 x 1.6 x 19mm

5шт.

11

47510300

SHELL

Lower - Case

1шт.
