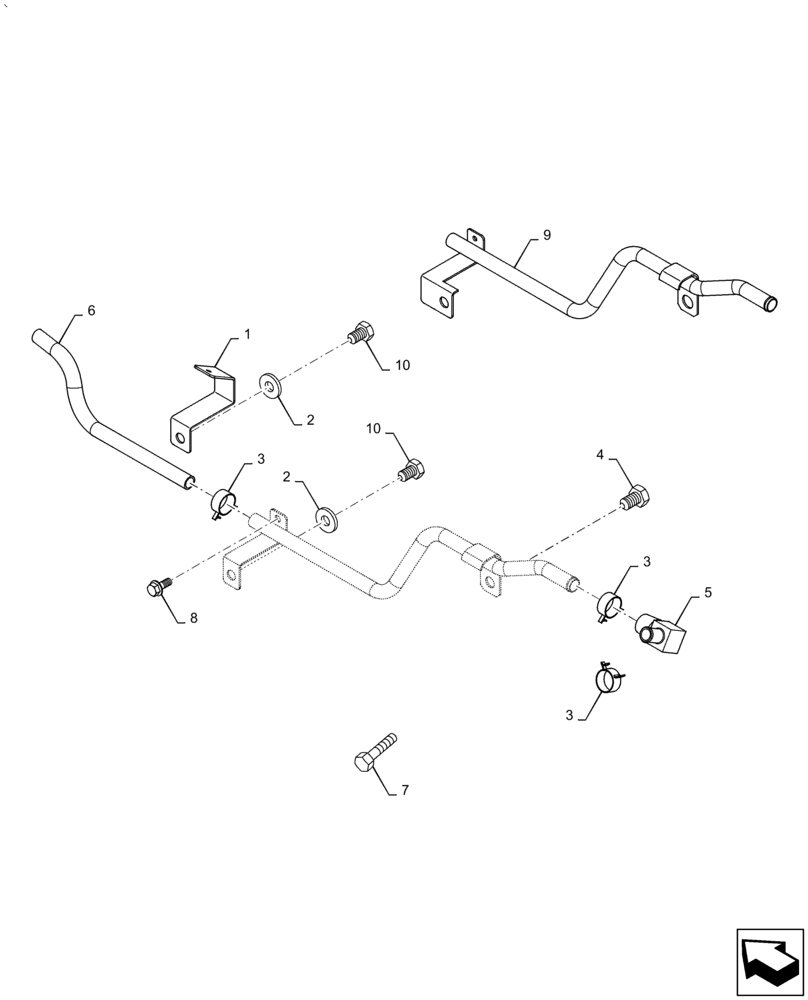

Запчасти Case IH PUMA 2304 (50.200.BY[03]) - HEATING SYSTEM PIPES (50) - CAB CLIMATE CONTROL

1

82024370

BRACKET

1шт.

2

14496701

WASHER,13.00mm ID x 24.00mm OD x 2.50mm, CST, ZND

2шт.

3

82019905

HOSE CLAMP,22 - 26mm X 12mm

4шт.

4

81853129

SCREW,Pozidriv Pan Hd, M6 x 16mm, Cl 4.8, Full Thd

1шт.

5

87302771

ADAPTER

1шт.

6

82037691

FLEXIBLE HOSE,15.25 mm ID x 366.00 mm

1шт.

7

16287121

BOLT,Hex, M8 x 20mm, Cl 8.8, Full Thd

1шт.

8

82025437

BOLT,Hex, M14 x 2 x 25mm, Cl 8.8

1шт.

9

84162432

HEATER TUBE

1шт.

10

11112121

SCREW,Hex, M12 x 20mm, Cl 8.8, Full Thd

2шт.
