(39.140.AL) - (VAR.010-011) REAR BALLAST - 182 AND 364 KG

Запчасти Case IH PUMA 2304 (39.140.AL) - (VAR.010-011) REAR BALLAST - 182 AND 364 KG (39) - FRAMES AND BALLASTING

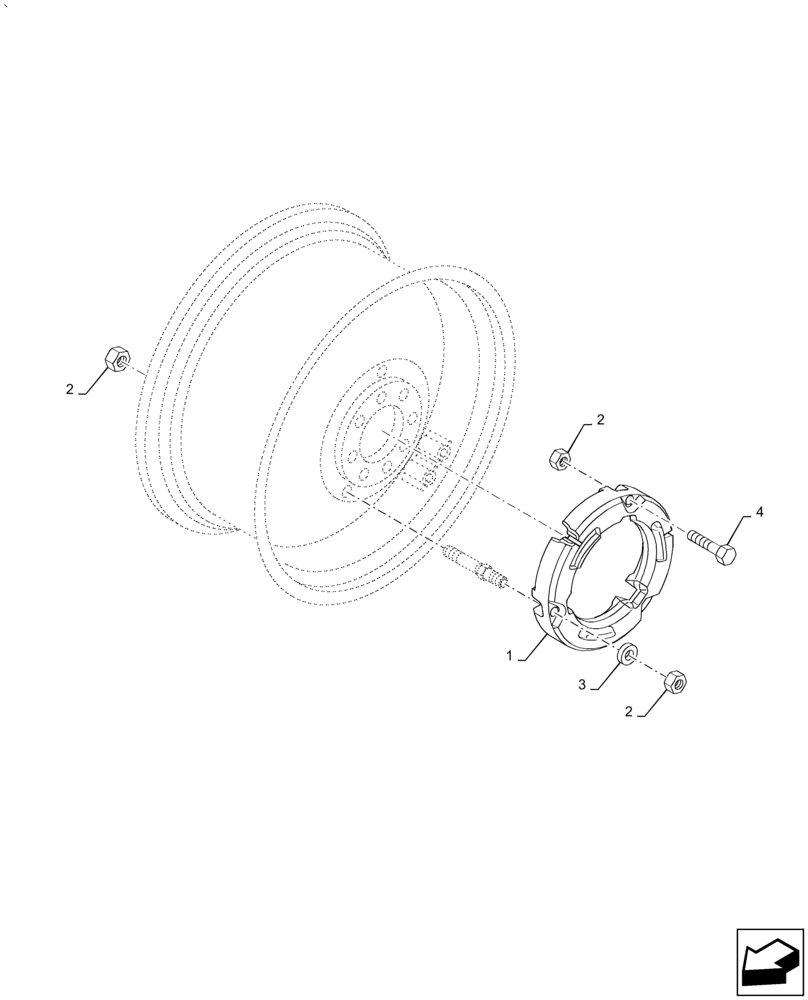

Схема запчастей Case IH PUMA 2304 - (39.140.AL) - (VAR.010-011) REAR BALLAST - 182 AND 364 KG (39) - FRAMES AND BALLASTING
2
3
1
2
4
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87310406

WHEEL WEIGHT

227Kg

4шт.

Qty.2 with 2x90Kg Rear Ballast Adaption Rings, VAR.010; Qty.4 with 4x90Kg Rear Ballast Adaption Rings, VAR.011

1шт.

2

412066

NUT,M16 x 2.0, Cl 8

12шт.

Qty.12 with 2x90Kg Rear Ballast Adaption Rings, VAR.010; Qty.18 with 4x90Kg Rear Ballast Adaption Rings, VAR.011

1шт.

3

47614363

WASHER

17.5 X 38 X 5 MM

24шт.

Qty.6 with 2x90Kg Rear Ballast Adaption Rings, VAR.010; Qty.18 with 4x90Kg Rear Ballast Adaption Rings, VAR.011

1шт.

4

47613910

BOLT

20шт.

4x90Kg Rear Ballast Adaption Rings, VAR.011

1шт.
