Запчасти Case IH PUMA 2304 (35.204.BE[04]) - REMOTE CONTROL VALVE, PTO, CLUTCH (35) - HYDRAULIC SYSTEMS

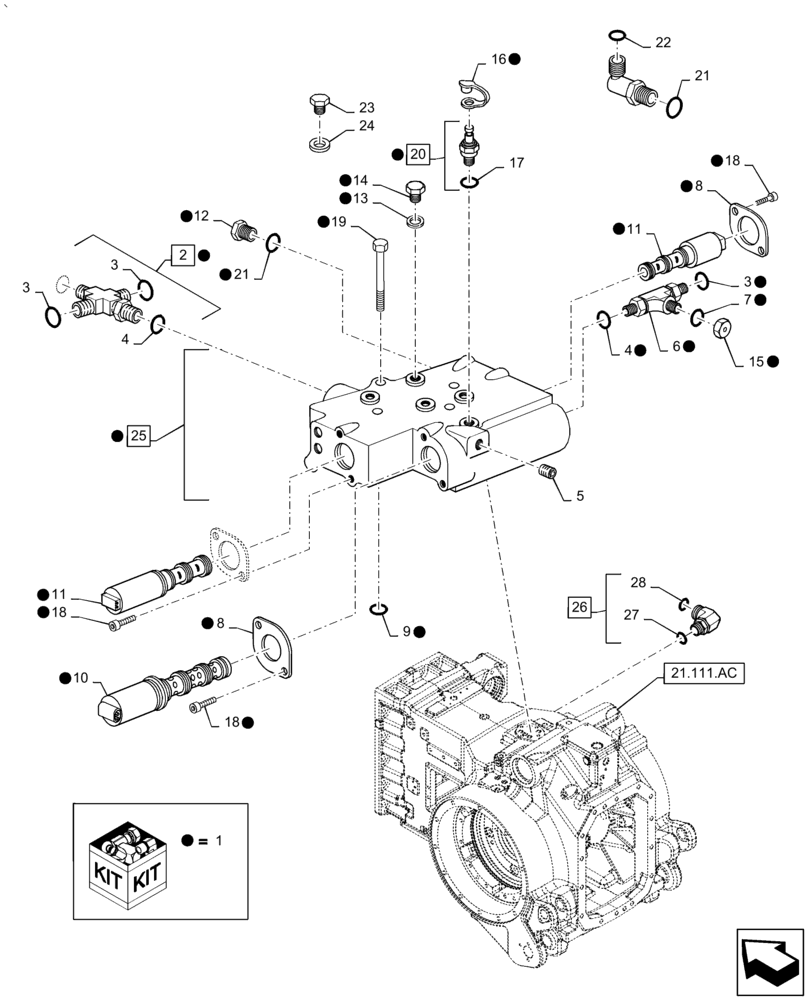

Схема запчастей Case IH PUMA 2304 - (35.204.BE[04]) - REMOTE CONTROL VALVE, PTO, CLUTCH (35) - HYDRAULIC SYSTEMS
25
28
1
11
20
19
4
1
1
1
3
2
18
1
1
15
22
1
7
1
1
1
1
18
1
1
18
24
1
12
4
16
21
3
17
13
1
1
6
1
1
1
1
1
21.111.ac
10
1
23
3
8
14
1
11
1
1
9
5
8
27
26
21

Артикул

Название

Примечание

Количество

1

87525222

DISTRIBUTOR

Low Pressure

1шт.

2

5187063

HYD CONNECTOR

Incl 3, 4

1шт.

3

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

4шт.

4

14438085

O-RING,19.3mm ID x 2.4mm

2шт.

5

14326004

PLUG,Hex Socket, M10 x 1.25 x 11.00mm, STL, DAC

6шт.

6

47136372

HYD CONNECTOR,M22 x 1.5 x 88.5mm L

1шт.

7

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

1шт.

8

5194826

BRACKET

4шт.

9

14457080

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

7шт.

10

87739558

SOLENOID VALVE,14W

Green Connectors

1шт.

11

84537085

SOLENOID VALVE,12V DC, 7.3Ohm

1шт.

11

84286799

SOLENOID VALVE,12V DC, 7.3Ohm

3шт.

12

10119311

PLUG,M16 x 1.5 x 12, Cl5.8

1шт.

13

87316678

SEALING WASHER,10mm ID x 16mm OD x 2.3mm Thk

4шт.

14

87535222

PLUG,Hex, M10 x 1 x 13mm

4шт.

15

47123020

PLUG,Hex

1шт.

16

5185424

DUST CAP,11.5mm ID x 81.5 L, Black

1шт.

17

14437785

O-RING,11.3mm ID x 2.4mm

1шт.

18

14305124

HEX SOC SCREW,M6 x 12mm, Cl 8.8, Full Thd

8шт.

19

15888821

BOLT,Hex, M10 x 1.25 x 70mm, Cl 8.8

4шт.

20

5185423

COUPLING

Incl 17

1шт.

21

14437885

O-RING,13.30mm ID x 2.40mm

3шт.

22

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

1шт.

23

10300511

PLUG,M12 x 1.5 x 12, Cl5.8

1шт.

24

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

1шт.

25

87523105

VALVE BODY

1шт.

26

86579687

ELBOW,90 Degree, 11/16"-16 x M16 x 1.5 ORB

Incl 26, 27

1шт.

27

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

28

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

Выбрано товаров: 29
