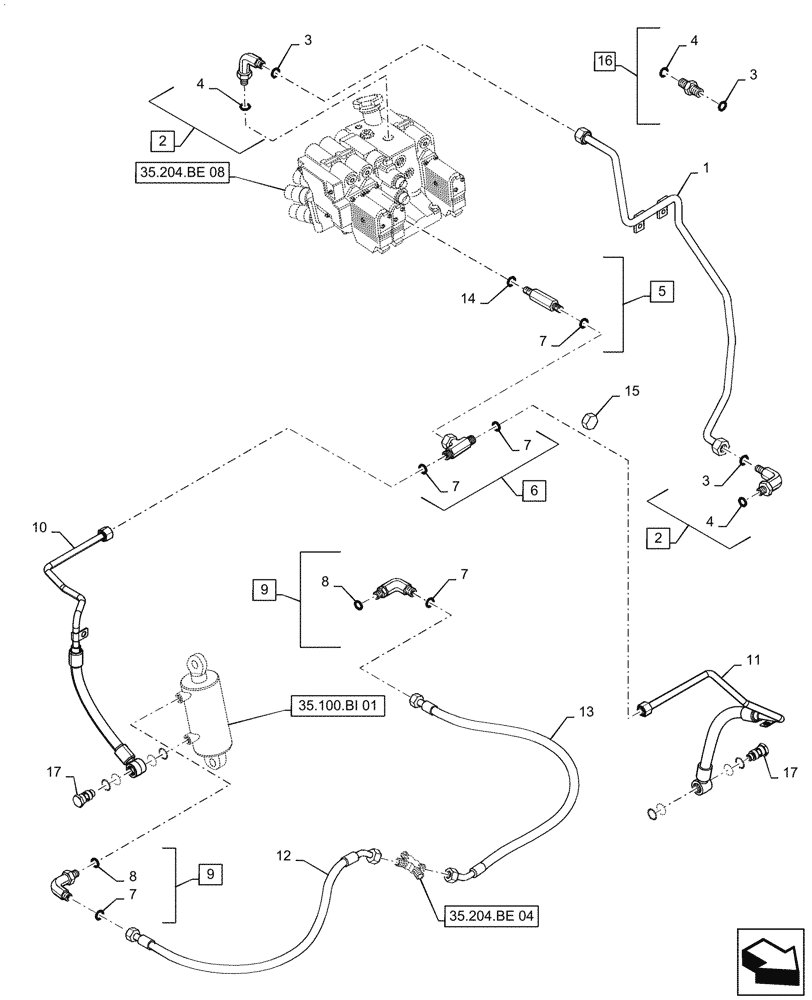

Запчасти Case IH PUMA 2304 (35.100.AR[03]) - LIFTER LINES - LIFTER CYLINDERS PIPES VALVES DRAIN (35) - HYDRAULIC SYSTEMS

1

87367195

PIPE

Remote Valves Drain

1шт.

2

5197118

ELBOW,90 Deg, 1"3/16-12 ORFS x M27 x 2 ORB

2шт.

3

5185513

O-RING,1.78mm Thk x 18.77mm ID, 85 Duro

3шт.

4

14438185

O-RING,24mm ID x 3mm

3шт.

5

5185048

HYD CONNECTOR

1шт.

6

5197110

TEE,1"-14 UNS

1шт.

7

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

7шт.

8

14437985

O-RING,15.3mm ID x 2.4mm

4шт.

9

5185562

ELBOW

2шт.

10

84544109

PIPE

RH from Remote Valves to Right Lift Cylinder

1шт.

11

84544105

PIPE

LH from Remote Valves to Left Lift Cylinder

1шт.

12

87316345

FLEXIBLE HOSE

RH from Right Cylinder to Low Pressure Distributor

1шт.

13

87316344

FLEXIBLE HOSE

LH from Left Lift Cylinder to Low Pressure Distributor

1шт.

14

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

15

47123020

PLUG,Hex

1шт.

16

5197215

HYD CONNECTOR,1"3/16-12 ORFS x M27 x 2 ORB

1шт.

17

84544103

HYD CONNECTOR,M18 x 1.5 x 55mm L

2шт.
