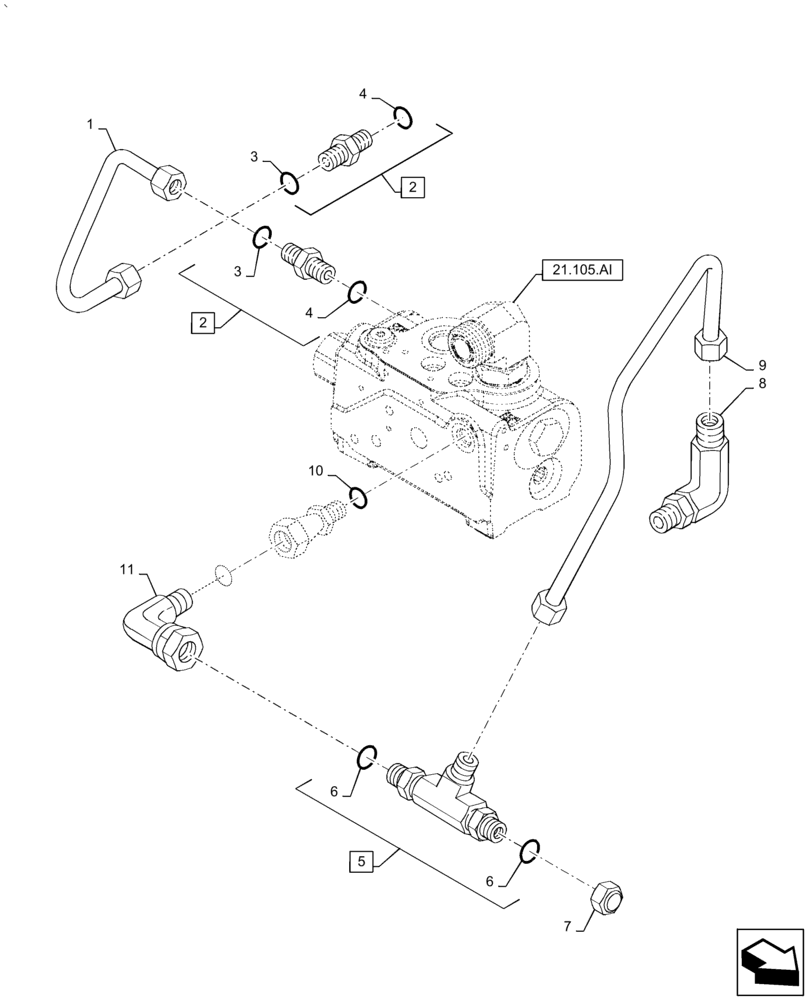

Запчасти Case IH PUMA 2304 (35.100.AR[01]) - LIFTER LINES - PRIOIRITY VALVE DRAIN AND LOAD SENSE LINE (35) - HYDRAULIC SYSTEMS

1

87392512

PIPE

Priority Valve Drain

1шт.

2

5192291

HYD CONNECTOR,1" - 14 ORFS x M22 x 1.5 ORB

2шт.

3

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

4

14438085

O-RING,19.3mm ID x 2.4mm

2шт.

5

81862791

VALVE,9/16" - 18 ORFS x 9/16" - 18 ORFS x 9/16" - 18 ORFS

1шт.

6

81827528

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

2шт.

7

5189973

PLUG

1шт.

8

47126659

ELBOW,90 Deg, 9/16-18 ORFS x 7/16-20 ORB

1шт.

9

87391558

PIPE

Load Sensing from Priority Valve to Pump Compensator

1шт.

10

14437685

O-RING,9.30mm ID x 2.40mm

1шт.

11

87391555

ELBOW

1шт.
