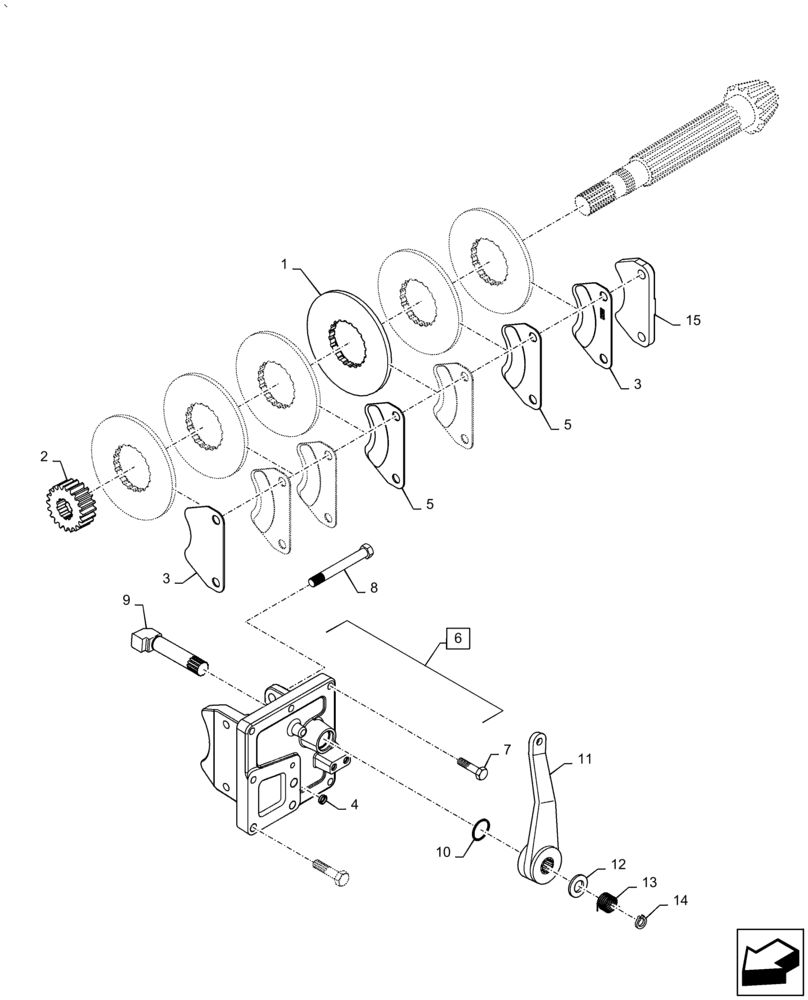

Запчасти Case IH PUMA 2304 (33.110.AV[02]) - PARKING BRAKE (33) - BRAKES & CONTROLS

1

47663732

BRAKE DISC

Parking

6шт.

2

5195109

GEAR

1шт.

3

5196712

BRAKE PAD,3.1mm Thk

2шт.

4

14328401

PLUG,M14, Tapered

1шт.

5

5196706

BRAKE PAD,4.2mm Thk

5шт.

6

87302426

SUPPORT

1шт.

7

11307024

BOLT,Hex, M10 x 1.25 x 40, 8.8, Full Thd

6шт.

8

84152439

SET SCREW,M14 x 1.5 x 16mm, Class 8.8

2шт.

9

47127313

LEVER

1шт.

10

14458080

O-RING,0.103" Thk x 1.11" ID, -122, Cl 5, 75 Duro

1шт.

11

47130368

LEVER

1шт.

12

5198146

SHIM,28.1mm ID x 31.9mm OD x 4mm Thk

1шт.

13

5178904

SPRING

1шт.

14

11067676

SNAP RING,M28, Ext

1шт.

15

84152436

BRAKE SHOE

1шт.
