Запчасти Case IH PUMA 2304 (25.102.AS[02]) - FRONT AXLE, DIFFERENTIAL LOCK (25) - FRONT AXLE SYSTEM

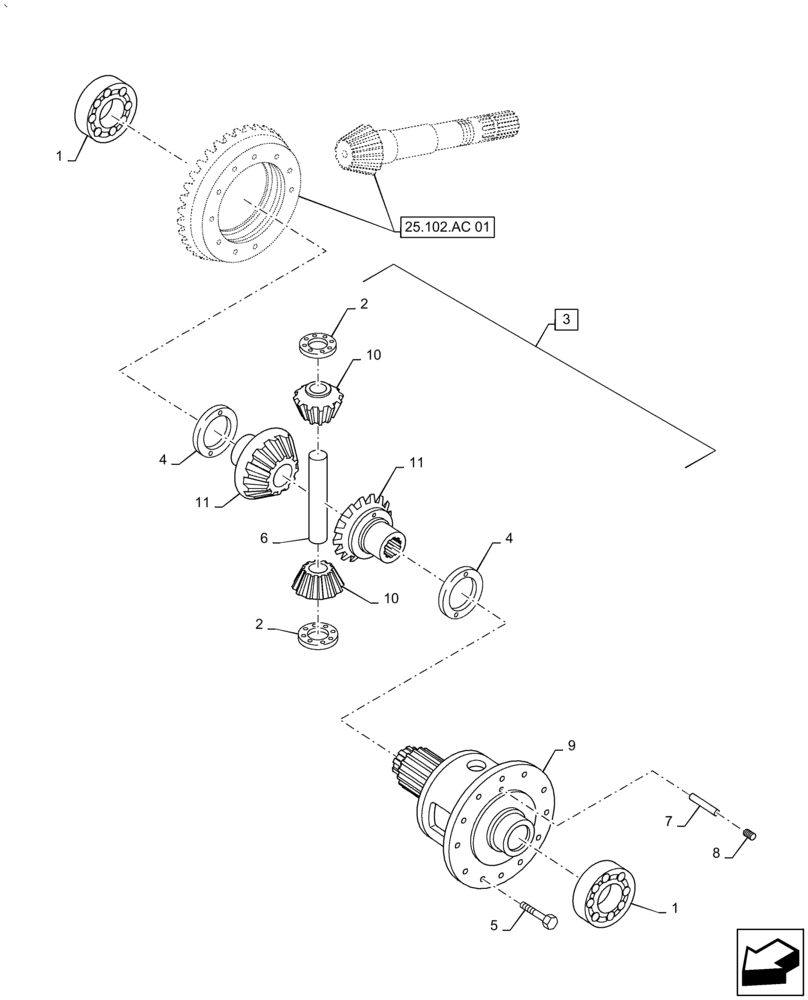

Схема запчастей Case IH PUMA 2304 - (25.102.AS[02]) - FRONT AXLE, DIFFERENTIAL LOCK (25) - FRONT AXLE SYSTEM
25.102.ac 01
7
2
3
8
9
1
1
4
2
4
11
5
11
10
10
6

Артикул

Название

Примечание

Количество

1

24903470

BEARING ASSY,70mm ID x 110mm OD x 25mm W

2шт.

2

4991658

THRUST WASHER,25mm ID x 54.5mm OD x 1.5mm Thk

2шт.

3

84371297

Incl 2, 4, 6, 10, 11

DIFFERENTIAL ASSY

1шт.

4

4997236

THRUST WASHER,51mm ID x 70mm OD x 1.6mm Thk

2шт.

5

84170038

LOCK BOLT,Hex, M12 x 1.25 x 35mm, Cl 10.9

12шт.

6

4991652

PIN,23mm OD x 157mm L

1шт.

7

5173242

ROLL PIN,6.5mm OD x 61mm L

1шт.

8

13807870

SET SCREW,Hex Soc, M8 x 14mm, Flat Pt

1шт.

9

87342770

HOUSING

1шт.

10

4991695

IDLER PINION

2шт.

11

5149551

PLANETARY GEAR,19T

2шт.

Выбрано товаров: 11
