(25.102.AC[01]) - FRONT AXLE - BEVEL GEAR PAIR

Запчасти Case IH PUMA 2304 (25.102.AC[01]) - FRONT AXLE - BEVEL GEAR PAIR (25) - FRONT AXLE SYSTEM

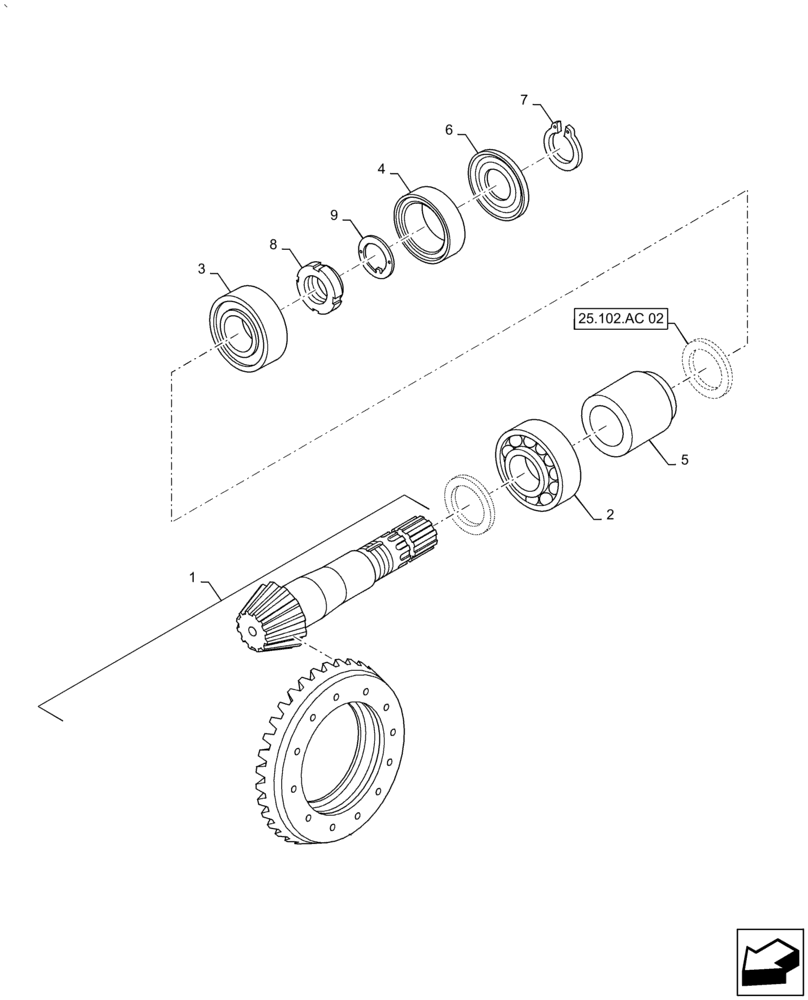

Схема запчастей Case IH PUMA 2304 - (25.102.AC[01]) - FRONT AXLE - BEVEL GEAR PAIR (25) - FRONT AXLE SYSTEM
2
8
6
1
4
7
25.102.ac 02
5
3
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84365311

BEVEL GEAR

Assy

1шт.

2

5143109

TAPERED BEARING,41.27mm x 82.55mm x 26.54mm

1шт.

3

84368730

ROLLER BEARING,45mm ID x 100mm OD x 38.25mm W

1шт.

4

87349657

SEAL,37mm ID x 85mm OD x 15.5mm Thk

1шт.

5

87382586

SPACER,41.7mm ID x 52mm OD x 54mm L

1шт.

6

87546420

SEAL,37mm ID x 87mm OD x 1mm Thk

1шт.

7

5109282

CIRCLIP,M35, Ext x 2.50 Thk

1шт.

8

84289762

NUT,M40,1.5mm Pitch

1шт.

9

84345881

SPECIAL WASHER

1шт.
