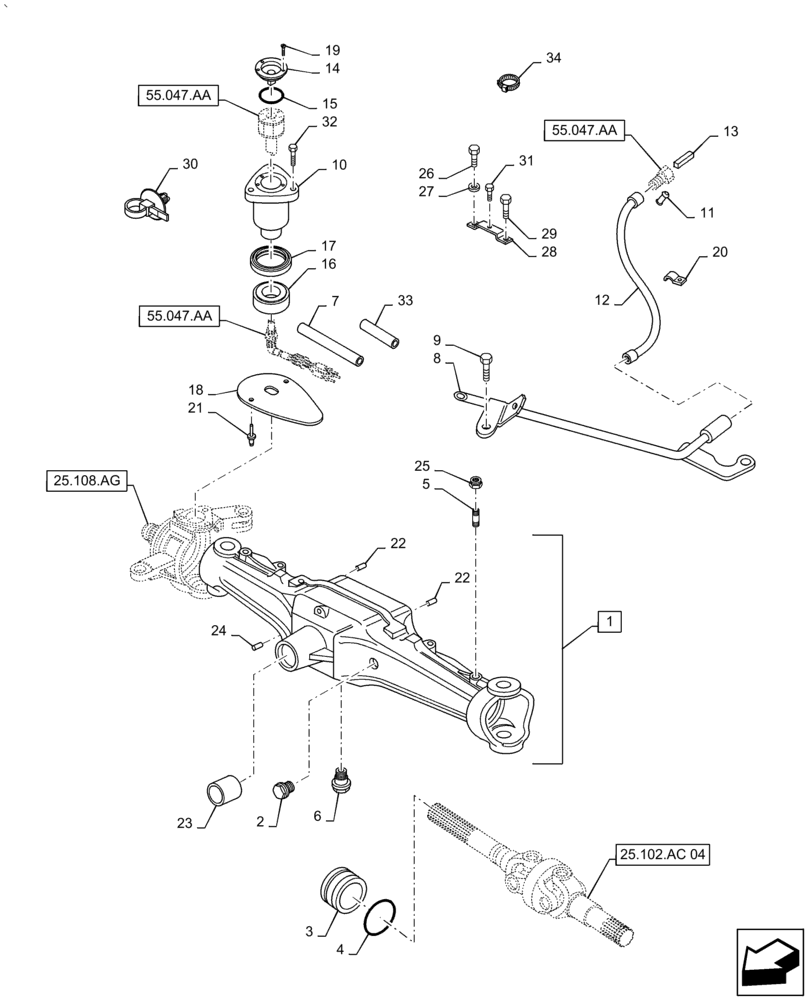

Запчасти Case IH PUMA 2304 (25.100.AV[03]) - FRONT AXLE, BOX, STEERING SENSOR (25) - FRONT AXLE SYSTEM

1

87633145

AXLE HOUSING

Incl. 22-24

1шт.

2

14324411

MAGNETIC PLUG,M22 x 1.50, Cl 5.8, ZND

M22 x 1.5

1шт.

3

84181579

BUSHING,60mm ID x 95mm OD x 52mm L

2шт.

4

14465680

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

2шт.

5

87316865

SET SCREW,M12 x 1.25 x 53mm

2шт.

6

14326211

PLUG,M22 x 1.50, R50, ZND

M22 x 1

1шт.

7

87619627

HOSE PROTECTION

85MM

1шт.

8

15540324

SCREW,Hex, M12 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

9

87592753

RIGID TUBE,10 mm ID x 12 mm OD x 368.4, 51 mm L

1шт.

10

87345372

BALL STUD

BALL PIN

1шт.

11

82918419

PLUG

1шт.

12

84472045

FLEXIBLE SHEATH

1шт.

12

82016109

FLEXIBLE SHEATH

1шт.

13

82918451

SPACER

1шт.

14

84384510

TOP

1шт.

15

14458280

O-RING,31.42mm ID x 2.62mm

1шт.

16

47137676

SPH ROLLER BEARING,40mm ID x 80mm OD x 24.75mm W

80MM

1шт.

17

47137701

SEAL,70mm ID x 90mm OD x 10mm Thk

70 x 90 x 10

1шт.

18

87315098

SHIELD

1шт.

19

13299214

SCREW,Pozidriv Flat Hd, Csk, M5 x 12mm, Cl 5.8

3шт.

20

10441490

COLLAR,14mm, Coat, 7mm Bolt Hole, P Type

1шт.

21

14641591

RIVET,Pop, Truss Hd, M3.20 x 12mm, AL, PLN

2шт.

22

5174376

DOWEL,M16 x 30

2шт.

23

5140170

PIN

1шт.

24

4966244

PIN,5mm OD x 15mm L

M5 x 15

1шт.

25

16101511

NUT,M12 x 1.25, Cl 8

2шт.

26

10902124

SCREW,Hex, M6 x 14mm, Cl 8.8

1шт.

27

10571579

LOCK WASHER,M6

1шт.

28

87599933

BRACKET

1шт.

29

10902021

BOLT,Hex, M6 x 12mm, Cl 8.8

1шт.

30

82033028

CABLE TIE,170mm L

1шт.

31

14305724

HEX SOC SCREW,M6 x 14mm, Cl 8.8, Full Thd

1шт.

32

14254434

SCREW,Hex, M14 x 1.5 x 30mm, Cl 10.9, Full Thd

3шт.

33

87329095

HOSE PROTECTION

1шт.

34

82035888

CLIP,16mm

1шт.
