(90.160.BL[03]) - AUTO GUIDANCE SYSTEM READY - CONTROLS COVER AND CABLES

Запчасти Case IH PUMA 230 (90.160.BL[03]) - AUTO GUIDANCE SYSTEM READY - CONTROLS COVER AND CABLES (90) - PLATFORM, CAB, BODYWORK AND DECALS

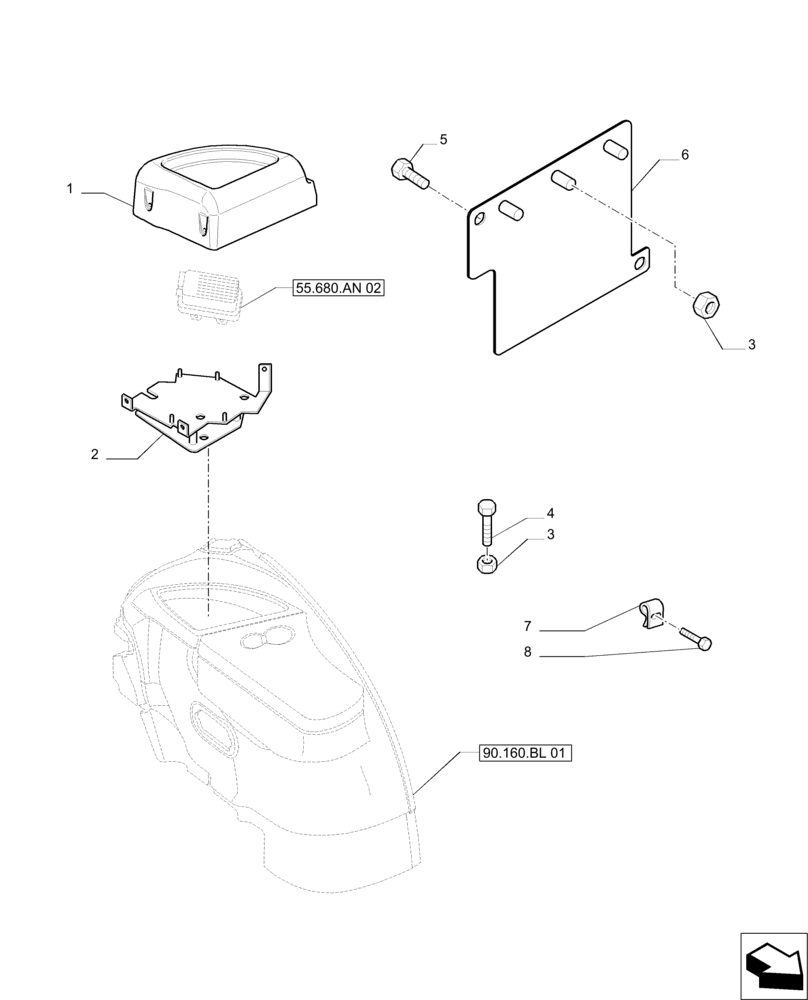

Схема запчастей Case IH PUMA 230 - (90.160.BL[03]) - AUTO GUIDANCE SYSTEM READY - CONTROLS COVER AND CABLES (90) - PLATFORM, CAB, BODYWORK AND DECALS
55.680.an 02
2
8
5
3
6
4
1
3
90.160.bl 01
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84238871

CAB STORAGE BOX

1шт.

2

87679455

SUPPORT

1шт.

3

15896211

NUT,M6, Cl 8

7шт.

4

81853129

SCREW,Pozidriv Pan Hd, M6 x 16mm, Cl 4.8, Full Thd

3шт.

5

10902221

BOLT,Hex, M6 x 16mm, CL 8.8

2шт.

6

87744795

SUPPORT

1шт.

7

14371771

SPRING NUT,M6, U, 24.3mm long

2шт.

8

10902124

SCREW,Hex, M6 x 14mm, Cl 8.8

2шт.

Выбрано товаров: 8
