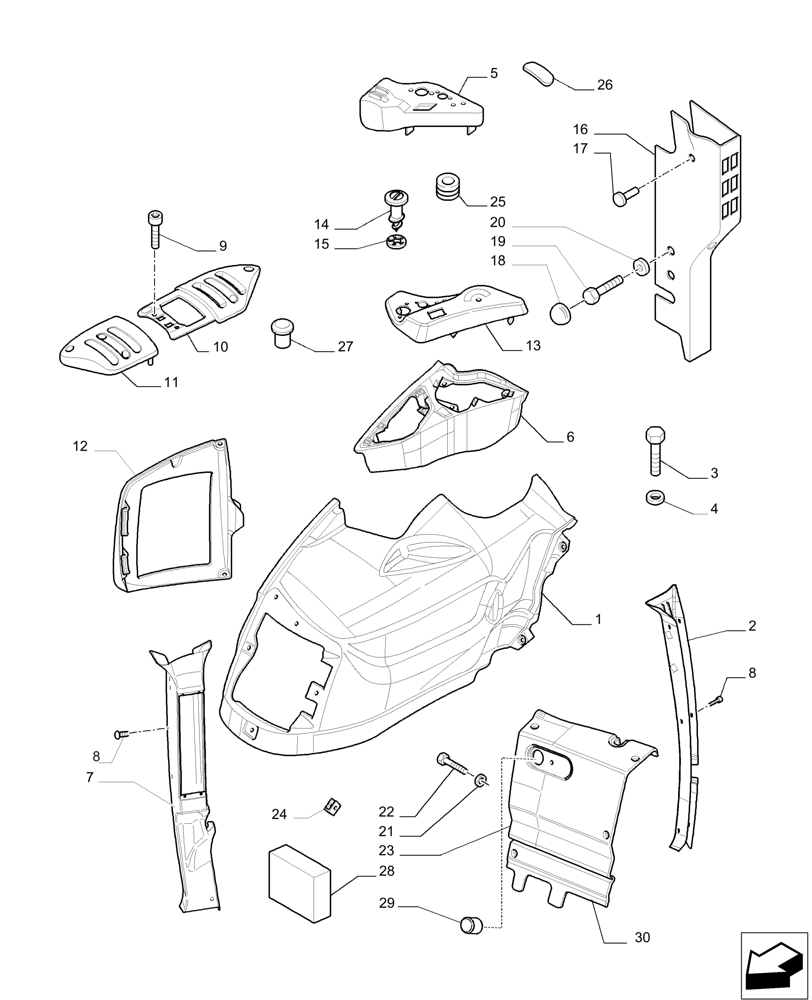

Запчасти Case IH PUMA 230 (90.160.BL[02]) - CONTROLS COVER (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84242733

PANEL

RH

1шт.

2

84222160

SOFT TRIM

1шт.

3

15647001

SELF-TAP SCREW,Pozidriv Pan Hd, M12 x 19mm

10шт.

4

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

4шт.

5

84249026

COVER

1шт.

6

84212620

PADDING

LH

1шт.

7

84364974

PADDING

RH

1шт.

8

82023482

ANCHOR,Button Hd, 8.25mm x 35.00mm

14шт.

9

15647001

SELF-TAP SCREW,Pozidriv Pan Hd, M12 x 19mm

10шт.

10

84190828

BEZEL

1шт.

11

84190826

BEZEL

1шт.

12

87734672

COVER

1шт.

13

84249026

COVER

1шт.

14

87734455

FASTENER

2шт.

15

87734456

RETAINER,13mm OD x 0.8mm Thk

2шт.

16

47382948

COVER

Right Hand, With Virtual Terminal

1шт.

17

82023460

STUD,M7.85 x 19.50mm, Plastic

4шт.

18

82012814

CAP,M10

2шт.

19

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

2шт.

20

87734153

SPACER,10.6mm ID x 36mm OD x 7.5mm L

2шт.

21

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

10шт.

22

15646907

SELF-TAP SCREW,Pozidriv Pan Hd, 16mm L

4шт.

23

84213367

PANEL

1шт.

24

87567755

SPRING NUT,M5

2шт.

25

83908579

PLUG,M7.62

1шт.

26

47056777

BLANK-OFF PLUG,31mm x 87mm, Black

1шт.

27

81862738

PLUG,M38 x 28 x 5mm

1шт.

28

84210984

BLOCK

1шт.

29

47998661

PLUG,35mm OD x 11.5mm L

1шт.

30

84213367

PANEL

1шт.
