Запчасти Case IH PUMA 230 (90.151.AP) - ARMREST CONTROL UNIT - SLIDE MECHANISM (90) - PLATFORM, CAB, BODYWORK AND DECALS

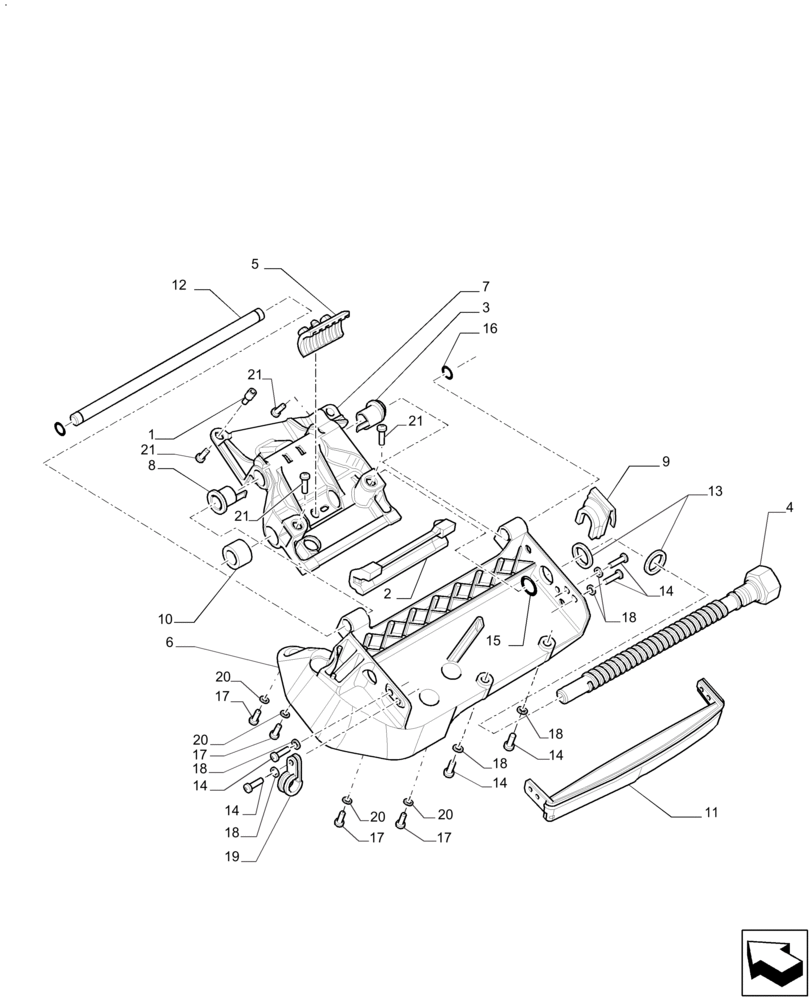

Схема запчастей Case IH PUMA 230 - (90.151.AP) - ARMREST CONTROL UNIT - SLIDE MECHANISM (90) - PLATFORM, CAB, BODYWORK AND DECALS
12
2
20
18
5
14
8
4
14
17
17
18
14
21
21
18
18
20
11
21
17
3
21
13
17
7
14
20
16
6
15
1
14
10
19
20
9
18

Артикул

Название

Примечание

Количество

1

15624411

RIVET,Flat, M6 OD x 16mm L

4шт.

2

84236392

SLIDE GUIDE

1шт.

3

84146826

BUSHING,14.3mm ID x 20.36mm OD x 40.3mm L

1шт.

4

84163864

ADJUSTMENT SCREW,309 mm L

1шт.

5

84146843

HALF-BUSHING,48mm L

1шт.

6

47360983

SLIDE

1шт.

7

47360984

SLIDE

1шт.

8

84146834

BUSHING,14.3mm ID x 20.36mm OD x 43.3mm L

1шт.

9

84146837

SPACER,18mm ID x 29mm OD

1шт.

10

84206874

SPACER,18.2mm ID x 30mm OD x 19.5mm L

1шт.

11

84236407

SUPPORT

1шт.

12

84146847

SHAFT,14mm OD x 280mm L

1шт.

13

84146848

FRICTION WASHER,24.4mm ID x 32mm OD x 1.7mm Thk

2шт.

14

86531615

HEX SOC SCREW,M6 x 20mm, Cl 8.8

6шт.

15

81865873

CLIP,19.40mm D

1шт.

16

11066271

RING,Ext, 14mm Dia

2шт.

17

14306621

HEX SOC SCREW,M8 x 35mm, Cl 8.8, Full Thd

4шт.

18

10519407

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

6шт.

19

84232921

CABLE CLIP,25mm ID

4шт.

20

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

21

47510297

HEX SOC SCREW,M6 x 1 x 25mm, Cl 8.8

4шт.

Выбрано товаров: 21
