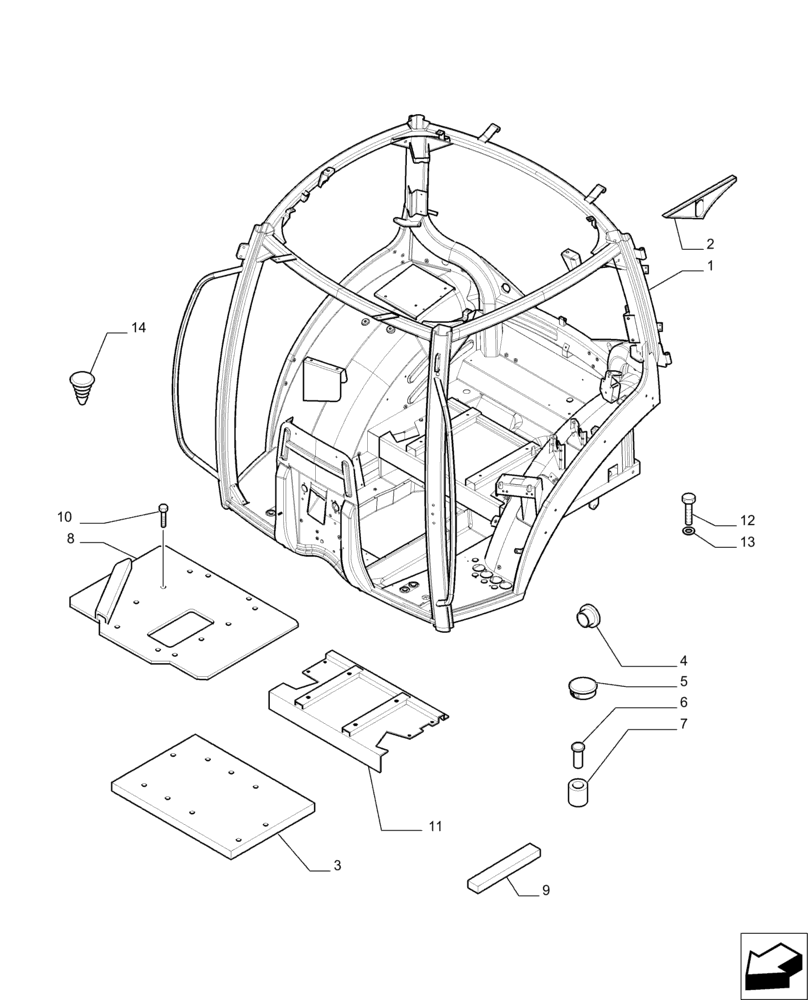

Запчасти Case IH PUMA 230 (90.150.AC[01]) - CAB FRAME (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84574446

FRAME

With Suspension

1шт.

1

84246943

CAB BODY

Without Suspension

1шт.

2

82036801

PLUG

RH

1шт.

2

82036800

PLUG

LH

1шт.

3

87686522

COVER ASSY

1шт.

4

82003283

PLUG,10.5mm OD

8шт.

4

87341141

PLUG

3шт.

4

84234592

PLUG,M20.7 x 10.5mm

2шт.

5

82031549

BLANK-OFF PLUG,35mm OD, Black

3шт.

6

82024991

NUT,M6

1шт.

6

82024992

RIVET,Flng, 11mm OD x 19.5mm L

15шт.

6

47754220

4шт.

6

82037720

RIVET,Plastic Snap, M3 x 4.50mm

2шт.

7

82027697

BUSHING,9.5mm ID x 18mm OD x 17mm L

8шт.

8

87686394

CAB FLOOR

1шт.

9

82000180

SEALING STRIP

1шт.

10

83929012

CAPTIVE WASHER SCREW,HWH, M6.3 x 1.8 x 20mm

17шт.

11

82033893

PLATE

1шт.

12

16043621

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

6шт.

13

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

6шт.

14

87716701

PLUG,Blanking, Snap, 6.40mm Dia

1шт.
