Запчасти Case IH PUMA 230 (90.116.AC[02]) - DYNAMIC FRONT FENDERS - FENDERS AND BRACKETS (90) - PLATFORM, CAB, BODYWORK AND DECALS

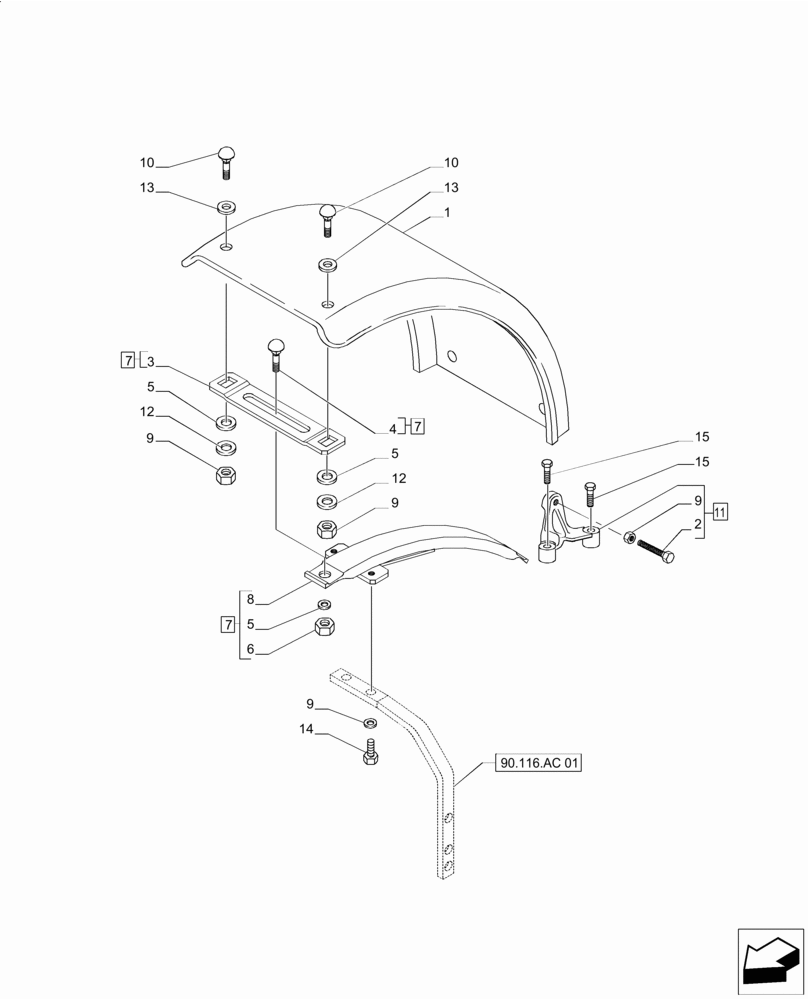

Схема запчастей Case IH PUMA 230 - (90.116.AC[02]) - DYNAMIC FRONT FENDERS - FENDERS AND BRACKETS (90) - PLATFORM, CAB, BODYWORK AND DECALS
15
3
13
1
9
5
9
5
10
4
11
15
7
9
12
10
5
8
9
14
90.116.ac 01
6
7
2
12
7
13

Артикул

Название

Примечание

Количество

1

87579461

MUD DEFLECTOR

2шт.

2

15215021

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8, Full Thd

1шт.

3

82021040

SUPPORT

2шт.

4

82021059

BOLT,Hex, M10 x 1.25 x 31mm

2шт.

5

12626201

WASHER,10.2mm ID x 25mm OD x 3mm Thk

2шт.

6

12577211

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 8, ZND

2шт.

7

87745844

SUPPORT

Incl 3 - 5, 6, 8

2шт.

8

87747746

SUPPORT ASSY.

1шт.

9

11701711

NUT,Hex, M10, Cl 8, ZND

3шт.

10

13183201

CARRIAGE BOLT,Sq Nk, M10 x 1.5 x 30mm, Cl 4.8

8шт.

11

87475464

STOP

Right Hand, Incl 2, 9

1шт.

11

87475467

STOP

Left Hand, Incl 2, 9

1шт.

12

11198574

BELLEVILLE WASHER,Belleville, M10.5

8шт.

13

84145763

WASHER,14mm ID x 41.3mm OD x 2.64mm Thk

8шт.

14

15540624

BOLT,Hex, M12 x 1.25 x 40mm, Cl 8.8, Full Thd

8шт.

15

15540821

SCREW,Hex, M12 x 1.25 x 50mm, Cl 8.8

2шт.

Выбрано товаров: 16
