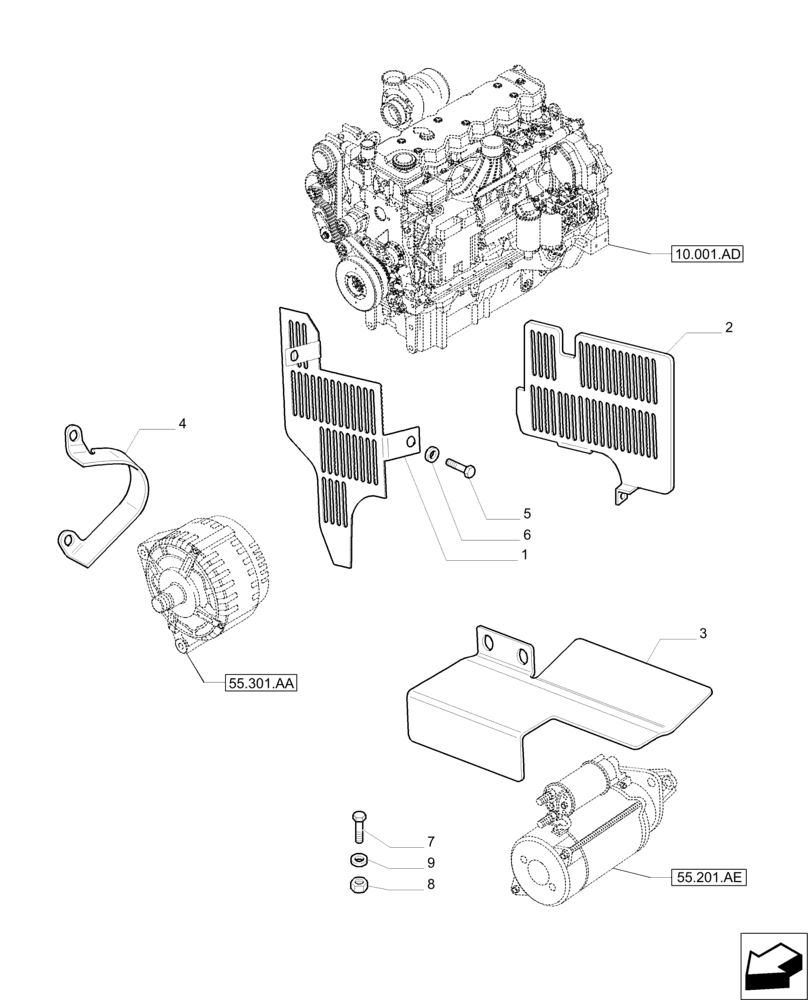

Запчасти Case IH PUMA 230 (90.102.AG[01]) - ENGINE GUARD (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87365151

GUARD

1шт.

2

87632715

GUARD

1шт.

3

87590024

SHIELD

1шт.

4

87581499

GUARD

1шт.

5

11106021

BOLT,Hex, M10 x 1.5 x 20 mm, Cl 8.8, Full Thd

2шт.

6

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

2шт.

7

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.

8

15896211

NUT,M6, Cl 8

1шт.

9

17094714

LOCK WASHER,M6 x 13

1шт.
