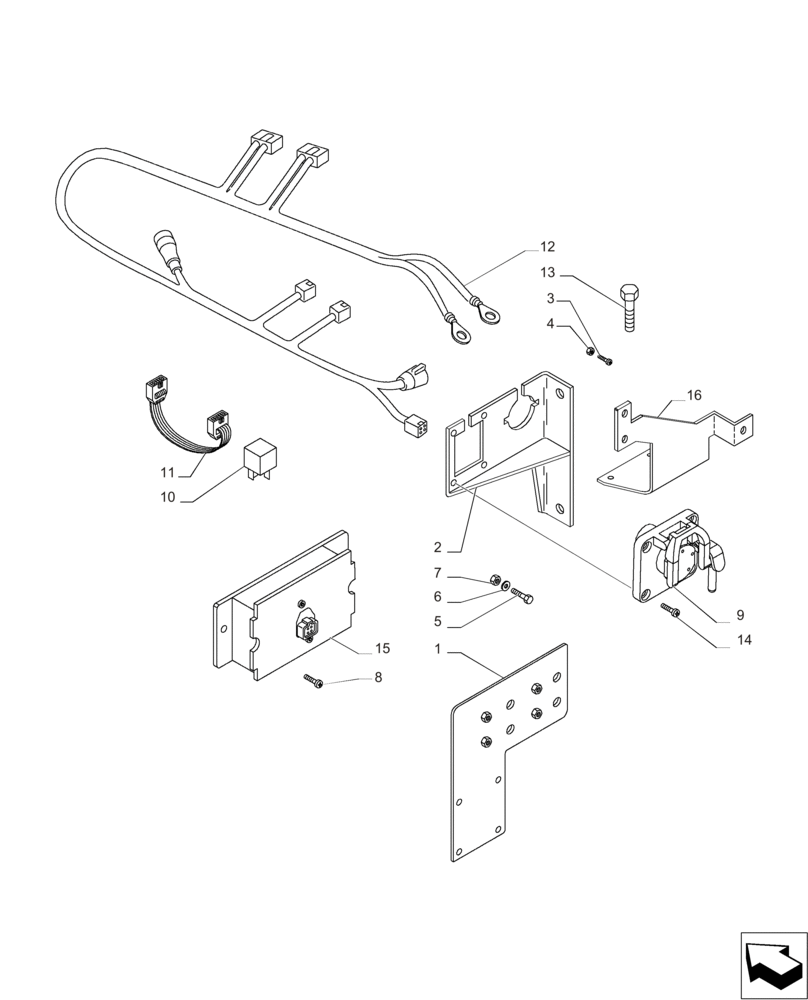

Запчасти Case IH PUMA 230 (55.100.BZ[03]) - VIRTUAL TERMINAL MOUNTED ON IMPLEMENT BRACKET - ISO BUS MOUNTING (55) - ELECTRICAL SYSTEMS

1

84268760

SUPPORT

1шт.

2

84384570

SUPPORT

1шт.

3

86050276

BOLT,Hex, M5 x 16mm, Cl 8.8, Full Thd

4шт.

4

15896421

NUT,M5, Cl 10

4шт.

5

120100

BOLT,M6 x 20mm, Cl 8.8

4шт.

6

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

4шт.

7

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

4шт.

8

76043554

SCREW,M4.8 x 16mm

2шт.

9

87522416

ELEC CONNECTOR,Female, 5 Cavities

1шт.

10

82017871

RELAY,12V, 20A

2шт.

11

87638191

WIRE HARNESS

1шт.

11

84538374

WIRE HARNESS

1шт.

12

84264480

HARNESS

1шт.

13

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

2шт.

14

86511827

SCREW,Phillips Drive, Pan HD, M5 x 20mm, Cl 4.8

4шт.

15

82038683

ELEC. TERMINAL PIN

ELEC CONNECTOR

1шт.

16

87606848

SUPPORT

1шт.
