Запчасти Case IH PUMA 230 (50.104.AC[04]) - HEATING/AIR CONDITIONING - HEATER-AIR CONDITIONER AND RELATED PARTS (50) - CAB CLIMATE CONTROL

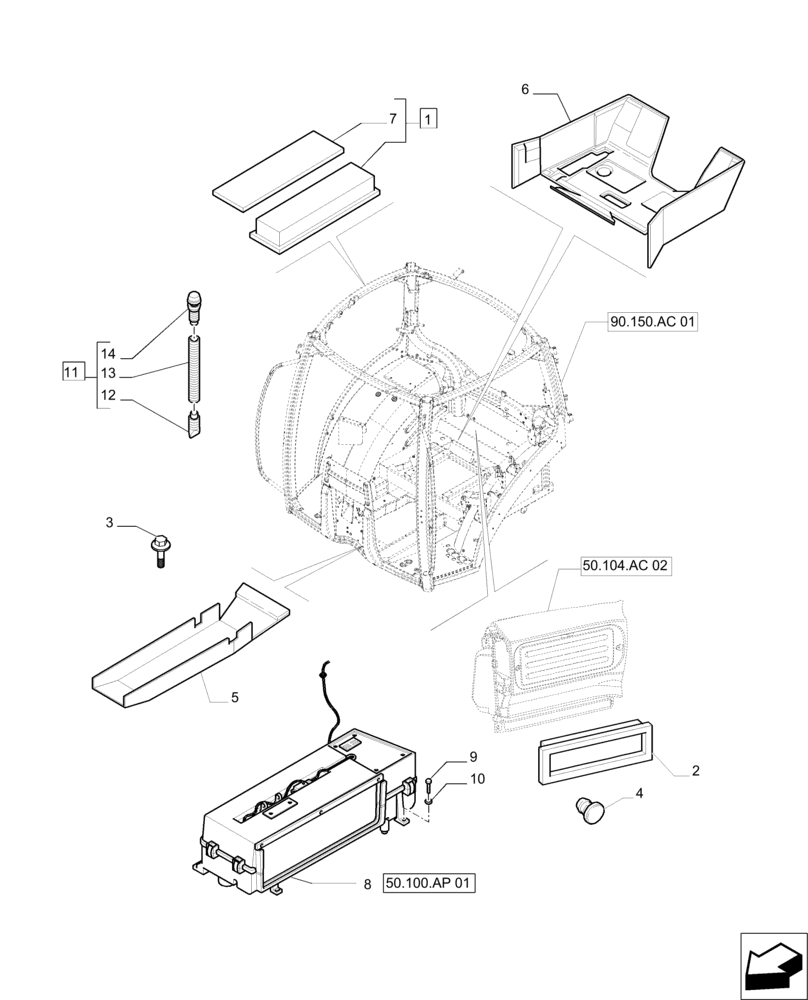

Схема запчастей Case IH PUMA 230 - (50.104.AC[04]) - HEATING/AIR CONDITIONING - HEATER-AIR CONDITIONER AND RELATED PARTS (50) - CAB CLIMATE CONTROL
5
9
13
8
3
4
90.150.ac 01
50.100.ap 01
1
10
11
7
12
14
50.104.ac 02
2
6

Артикул

Название

Примечание

Количество

1

47863571

AIR FILTER

Incl 7

2шт.

2

87726699

CAB FILTER,Fresh Air, 380mm x 130mm x 49mm, Paper

1шт.

3

87581911

FLANGE BOLT,Hex, M6 x 25mm

2шт.

4

82027031

PLUG,M10

1шт.

5

87661587

INSULATOR

1шт.

5

87661589

INSULATOR

1шт.

6

87661585

INSULATOR

1шт.

7

87726694

FOAM

1шт.

8

84210146

AIR CONDITIONER

1шт.

9

120100

BOLT,M6 x 20mm, Cl 8.8

2шт.

10

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

2шт.

11

84232466

TUBE

A/C HOSE, Incl 12 - 14

2шт.

12

84232000

CHECK VALVE

2шт.

13

84232468

HOSE,25.40 mm ID x 800.00 mm

A/C HOSE

2шт.

14

84231998

DRAIN

2шт.

Выбрано товаров: 15
