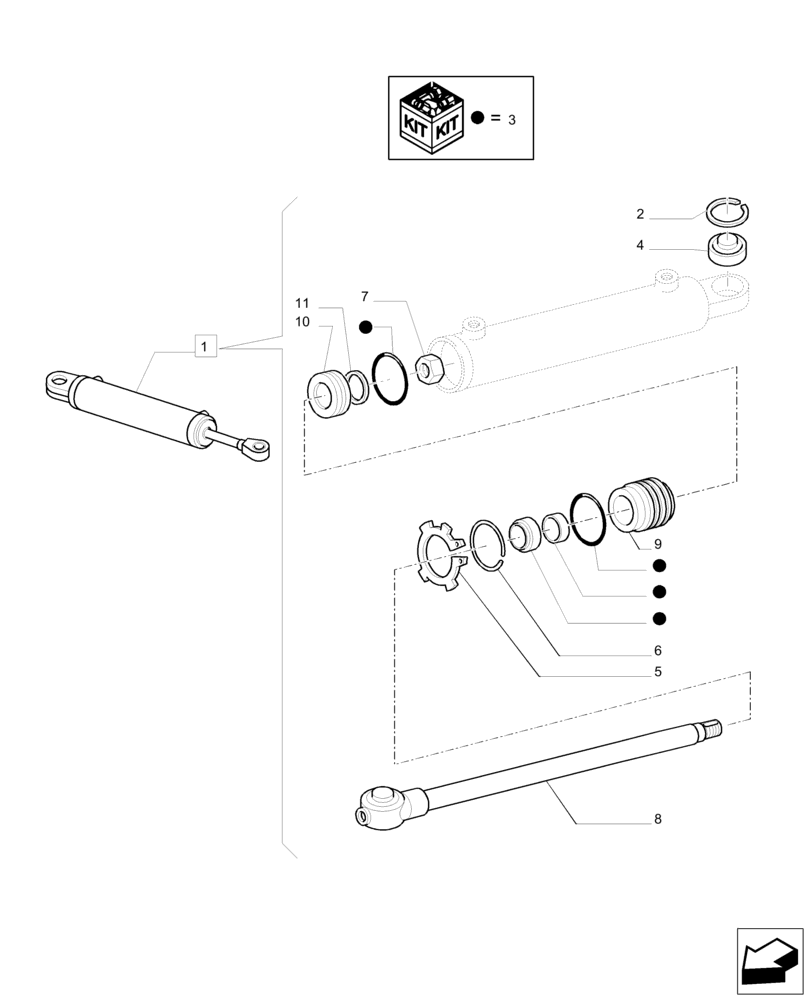

Запчасти Case IH PUMA 230 (41.216.AN[02]) - FRONT AXLE - HYDRAULIC STEERING CYLINDER - BREAKDOWN (41) - STEERING

1

5198883

STEERING CYLINDER,Double Acting, 25mm Rod, 232.5mm Stroke

Incl 2 - 11

1шт.

2

5192824

LOCKING RING,42mm

1шт.

3

5199826

SEAL KIT

1шт.

4

5192823

BUSHING,25mm ID x 42mm OD x 20mm W

1шт.

5

5192813

LOCKING RING

1шт.

6

5192815

RING

1шт.

7

47127222

LOCK NUT

1шт.

8

5199831

PISTON ROD

1шт.

9

5199830

JACK HEAD

1шт.

10

5199829

JACK PISTON

1шт.

11

5199828

RING

1шт.
