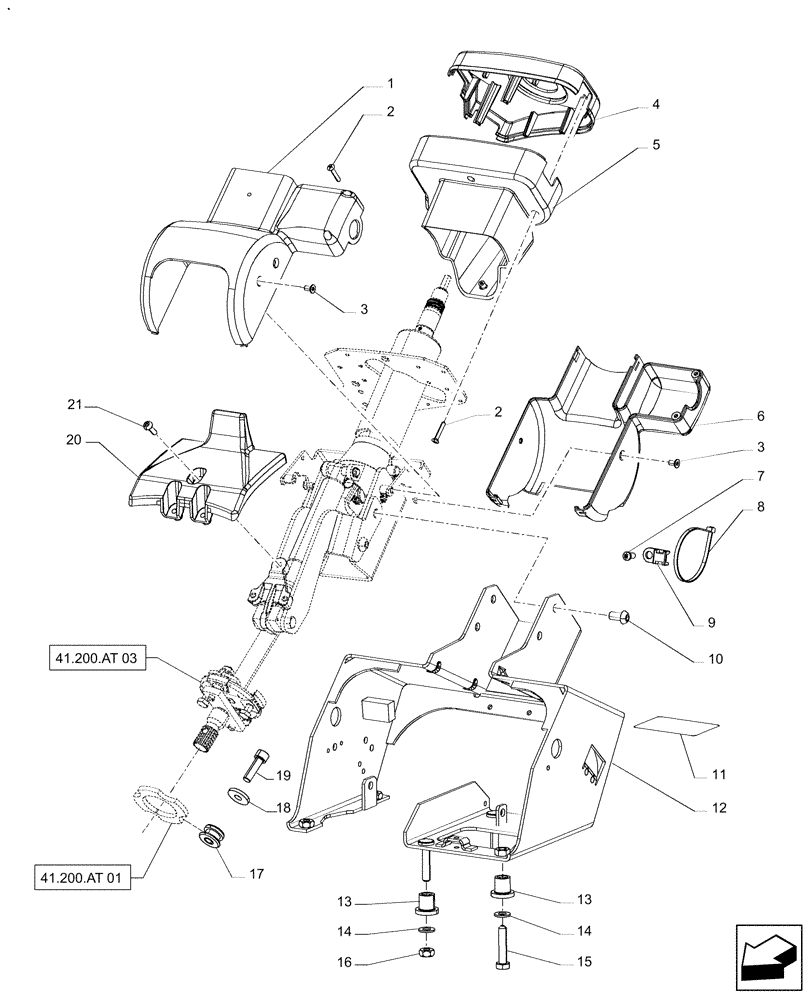

Запчасти Case IH PUMA 230 (41.200.AT[02]) - COVERING SUPPORT - STEERING COLUMN (41) - STEERING

1

82036756

COVER

1шт.

2

83990793

SELF-TAP SCREW,Oval Cross, #10-16 x 1 1/4"

5шт.

3

84187819

SCREW,Torx Flat Hd, M6 x 12mm, Cl 5.8

6шт.

4

87568061

COVER

1шт.

5

87568062

COVER

1шт.

6

82036446

COVER

1шт.

7

15957101

SELF-TAP SCREW,Pan, M3.5 x 10.00mm, R40, ZND

1шт.

8

14560287

CABLE TIE,207.00mm L

1шт.

9

47056773

RETAINER COLLAR,5mm ID x 19.1mm L x 9.5mm W

1шт.

10

87028324

HEX SOC SCREW,BTN HD, M10 x 1.5 x 20mm, Cl 8.8

4шт.

11

82004409

DECAL

1шт.

12

87579189

SUPPORT

1шт.

13

82027074

SPACER,20mm ID x 30mm OD x 25mm L

6шт.

14

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

6шт.

15

11107221

BOLT,Hex, M10 x 50mm, Cl 8.8

4шт.

16

11701711

NUT,Hex, M10, Cl 8, ZND

2шт.

17

82009429

ISOLATOR

4шт.

18

83904166

WASHER,10.5mm ID x 30mm OD x 4mm Thk

4шт.

19

81869630

HEX SOC SCREW,M10 x 35mm, Cl 8.8

4шт.

20

47413729

COVER

1шт.

21

84187817

SCREW,Torx Pan Hd, M6 x 20mm, Cl 4.8

3шт.
