Запчасти Case IH PUMA 230 (41.200.AT[01]) - HYDROSTATIC STEERING WHEEL AND STEERING COLUMN (41) - STEERING

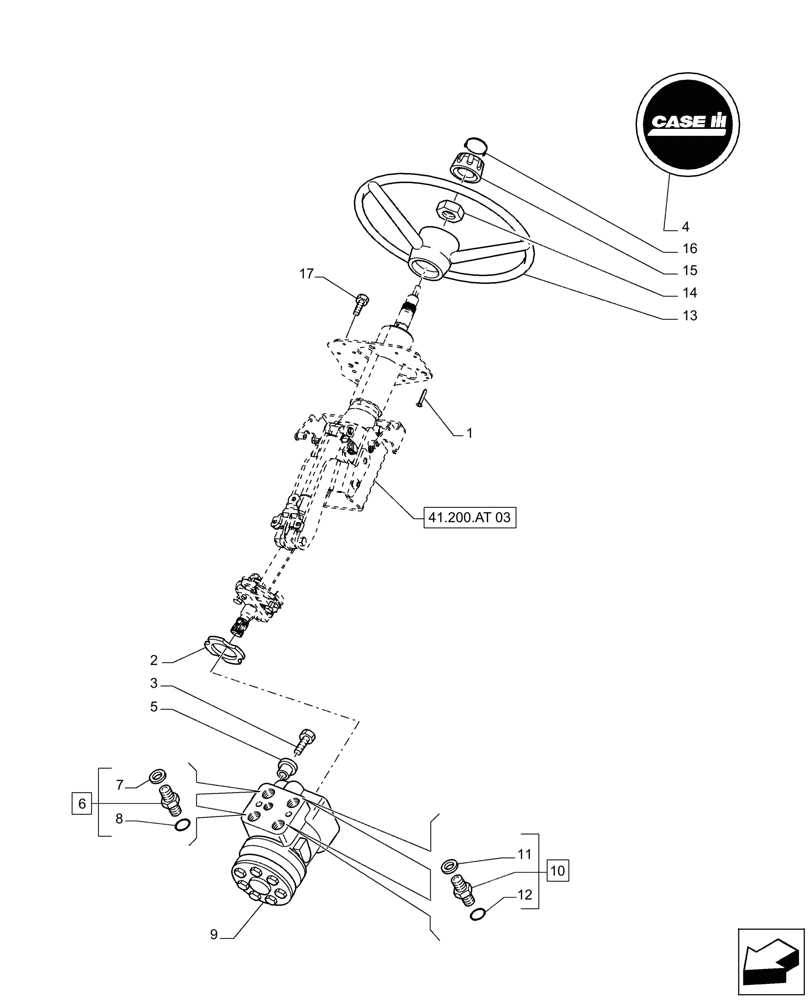

Схема запчастей Case IH PUMA 230 - (41.200.AT[01]) - HYDROSTATIC STEERING WHEEL AND STEERING COLUMN (41) - STEERING
41.200.at 03
12
11
4
10
2
9
3
13
16
7
8
6
1
15
17
5
14

Артикул

Название

Примечание

Количество

1

83990793

SELF-TAP SCREW,Oval Cross, #10-16 x 1 1/4"

5шт.

2

81873344

RUBBER INSULATOR

1шт.

3

11106021

BOLT,Hex, M10 x 1.5 x 20 mm, Cl 8.8, Full Thd

4шт.

4

86401707

EMBLEM

1шт.

5

82009429

ISOLATOR

4шт.

6

82016498

HYD CONNECTOR,M22 x 1.5 DIN, 1" - 14 ORFS

Incl 7, 8

2шт.

7

82016732

SEAL,19.6mm ID x 24.3mm OD x 1.5mm Thk

2шт.

8

83901443

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

9

84165701

HYDRAULIC STEERING

1шт.

10

82016499

HYD CONNECTOR,11/16"-16 x M18 x 1.5

Incl 11, 12

2шт.

11

83999938

SEAL,15.7mm ID x 20.9mm OD x 1.5mm Thk

1шт.

12

81844851

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

13

9821708

STEERING WHEEL

1шт.

14

10726611

THIN NUT,Thin, M18, 1.5mm Pitch, Cl 04, ZND

1шт.

15

87302160

KNOB

1шт.

16

87302798

CAP,54mm OD, Black

1шт.

17

15957101

SELF-TAP SCREW,Pan, M3.5 x 10.00mm, R40, ZND

1шт.

Выбрано товаров: 17
