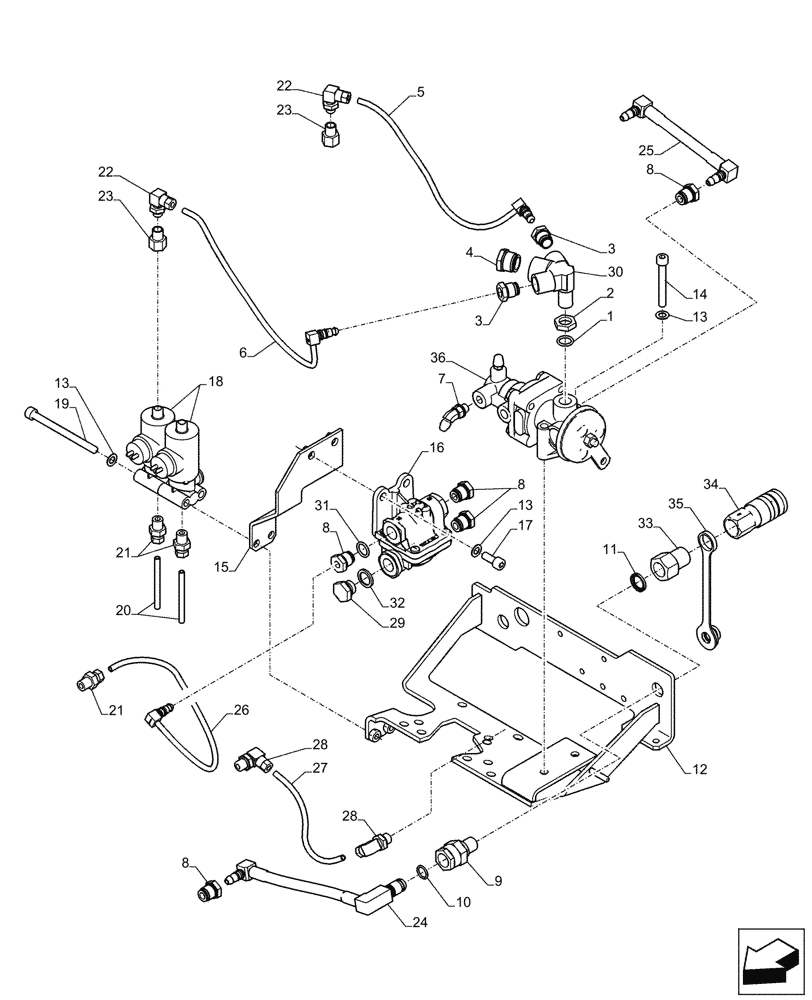

Запчасти Case IH PUMA 230 (33.224.BC[05]) - PNEUMATIC TRAILER BRAKE, CONTROL VALVE (33) - BRAKES & CONTROLS

1

82019797

O-RING,2.5mm Thk x 14mm ID

1шт.

2

82019796

LOCK NUT

1шт.

3

82036187

HYD CONNECTOR,M16 x 1.5

2шт.

4

82034157

ADAPTER

1шт.

5

87677917

TUBE

1шт.

6

87677915

TUBE

1шт.

7

87588084

HYD CONNECTOR,M10 x 1

1шт.

8

87588079

HYD CONNECTOR,M16 x 1.5

4шт.

9

87678128

ADAPTER

2шт.

10

87678125

O-RING,2mm Thk x 14mm ID, 70 Duro

2шт.

11

87678124

WASHER,Backing, 16.10mm, 19.50mm ID x 22.00mm OD x 2.60mm

2шт.

12

84157689

SUPPORT

1шт.

13

10516679

LOCK WASHER,Helical Spring, 8.20mm ID x 14.80mm OD x 2.20mm, C72, ZNM

6шт.

14

14308934

HEX SOC SCREW,M8 x 1.25 x 60mm, Cl 10.9

2шт.

15

84143167

SUPPORT

1шт.

16

84157669

VALVE

1шт.

17

14306324

HEX SOC SCREW,M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

18

84359255

SOLENOID VALVE,1.41A, 12 VDC,

2шт.

19

14302124

HEX SOC SCREW,M8 x 1.25 x 100mm, Cl 8.8

2шт.

20

82019793

HOSE,6.00mm OD x 70.00mm

2шт.

21

82006828

ADAPTER

3шт.

22

87678122

HYD CONNECTOR,M10 x 1

2шт.

23

87678127

HYD CONNECTOR,M10 x 1, M12 x 1.5

2шт.

24

84157670

FLEXIBLE HOSE,12mm ID x 164mm, MAT 3012

1шт.

25

84157672

FLEXIBLE HOSE,12.00mm OD x 123.00mm

1шт.

26

84157675

FLEXIBLE HOSE,436.00 mm

1шт.

27

87580708

TUBE,4 mm ID x 6 mm OD x 253 mm L

1шт.

28

87678126

ELBOW,Hex, M12 x 1.4 x 28mm

2шт.

29

84157695

PLUG,Hex, M16 x 1.5 x 17mm L

1шт.

30

82019795

FITTING

1шт.

31

87392491

O-RING,2.5mm Thk x 14mm ID

1шт.

32

86010343

WASHER,Backing, 16.10mm, 19.50mm ID x 22.00mm OD x 2.60mm

1шт.

33

47382422

ADAPTER

2шт.

34

84472534

COUPLING, QUICK, FEM

2шт.

35

47490589

PLUG

2шт.

36

82016341

TRAILER BRAKE VALVE

1шт.
