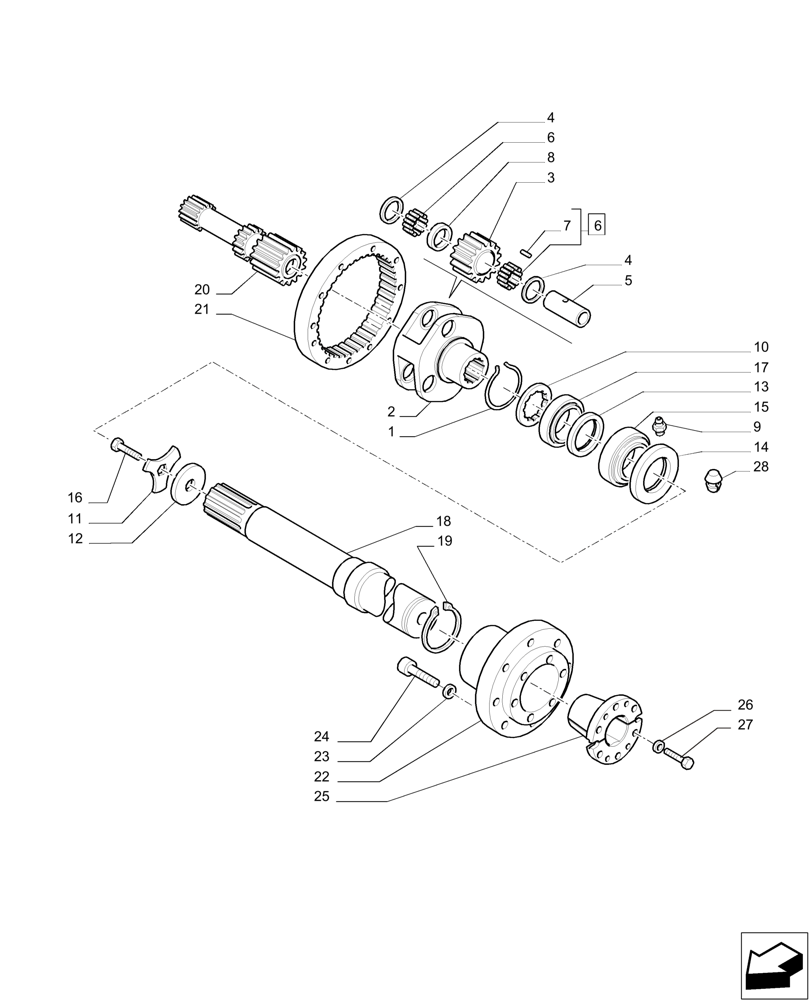

Запчасти Case IH PUMA 230 (27.100.AR[01]) - BAR AXLE 112" AND 119" FINAL DRIVE (27) - REAR AXLE SYSTEM

1

5136132

CIRCLIP,4mm Thk

2шт.

2

5165494

SUPPORT

2шт.

3

87558449

IDLER PINION

6шт.

4

5136128

THRUST WASHER,62.5mm ID x 108mm OD x 1mm Thk

12шт.

5

5136130

PIN,62.4mm OD x 134mm L

6шт.

6

5136131

ROLLER BEARING,62.4mm ID x 76.4mm OD x 32mm W

Incl 7

6шт.

7

5116733

NEEDLE ROLLER,62.4mm ID x 76.4mm OD x 0mm W

62шт.

8

5136133

SPACER,64.5mm ID x 76.3mm OD x 5mm L

6шт.

9

13407211

LUBE NIPPLE,M10 x 1

2шт.

10

5121644

THRUST WASHER,78mm ID x 112mm OD x 5mm Thk

2шт.

11

5124397

LOCKING PLATE

2шт.

12

84299173

SPECIAL WASHER

2шт.

13

5165505

SEAL,88mm ID x 110mm OD x 12mm Thk

2шт.

14

5196486

SEAL,114mm ID x 146mm OD x 16mm Thk

2шт.

15

48015781

TAPERED BEARING

2шт.

16

15992537

BOLT,Hex, M22 x 1.5 x 55mm, Cl 10.9, Full Thd

2шт.

17

48013720

TAPERED BEARING

2шт.

18

47523135

SHAFT

2шт.

19

11082174

CIRCLIP,105mm OD, DAC

2шт.

20

87558448

GEAR SHAFT

2шт.

21

87307352

RING GEAR

2шт.

22

47126431

HUB

2шт.

23

47126236

WASHER,23mm ID x 44mm OD x 6mm Thk

20шт.

24

87688508

BOLT,Hex, M22 x 2.5 x 90mm, Cl 8.8

12шт.

25

87645102

WEDGE,Lock, Silver

2шт.

26

47126236

WASHER,23mm ID x 44mm OD x 6mm Thk

12шт.

27

15225924

BOLT,Hex, M22 x 2.5 x 60mm, Cl 8.8

20шт.

28

81865567

PLUG,M18.5 Hole

2шт.
