Запчасти Case IH PUMA 230 (25.102.AD[01]) - FRONT AXLE - DIFFERENTIAL LOCKING (25) - FRONT AXLE SYSTEM

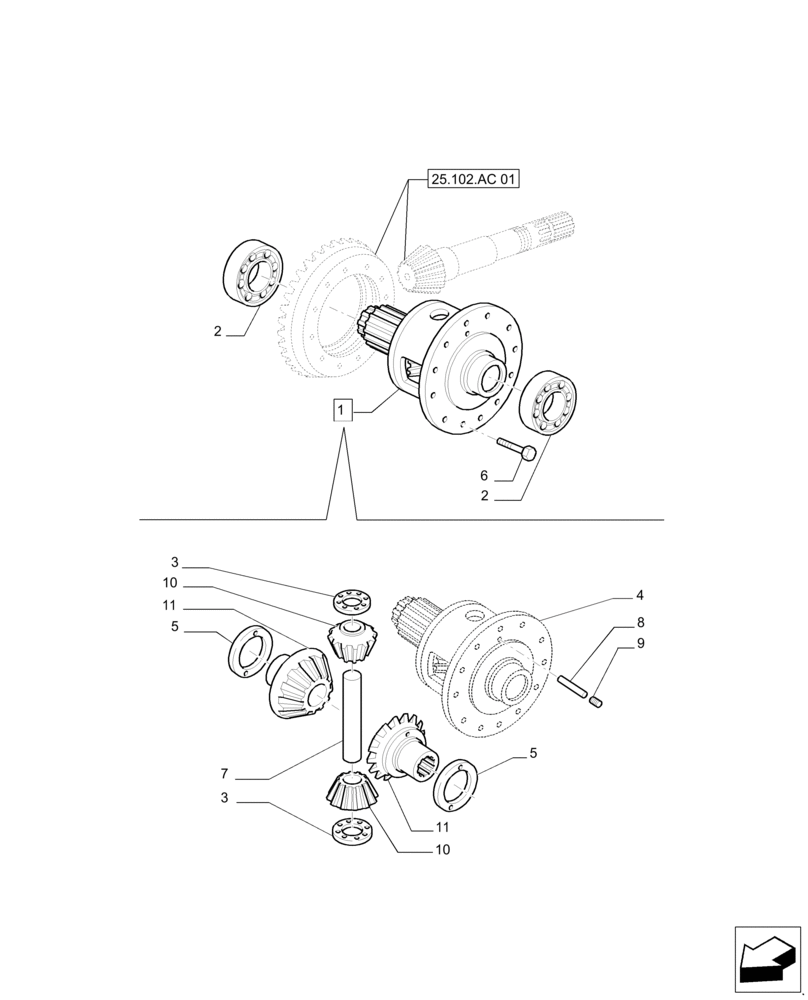

Схема запчастей Case IH PUMA 230 - (25.102.AD[01]) - FRONT AXLE - DIFFERENTIAL LOCKING (25) - FRONT AXLE SYSTEM
3
3
2
25.102.ac 01
11
8
10
2
11
4
6
9
5
5
1
10
7

Артикул

Название

Примечание

Количество

1

84371297

Incl 3 - 5, 7 - 11

DIFFERENTIAL ASSY

1шт.

2

24903470

BEARING ASSY,70mm ID x 110mm OD x 25mm W

2шт.

3

4991658

THRUST WASHER,25mm ID x 54.5mm OD x 1.5mm Thk

2шт.

4

87342770

HOUSING

1шт.

5

4997236

THRUST WASHER,51mm ID x 70mm OD x 1.6mm Thk

2шт.

6

84170038

LOCK BOLT,Hex, M12 x 1.25 x 35mm, Cl 10.9

12шт.

7

4991652

PIN,23mm OD x 157mm L

1шт.

8

5173242

ROLL PIN,6.5mm OD x 61mm L

1шт.

9

13807870

SET SCREW,Hex Soc, M8 x 14mm, Flat Pt

1шт.

10

4991695

IDLER PINION

2шт.

11

5149551

PLANETARY GEAR,19T

2шт.

Выбрано товаров: 11
