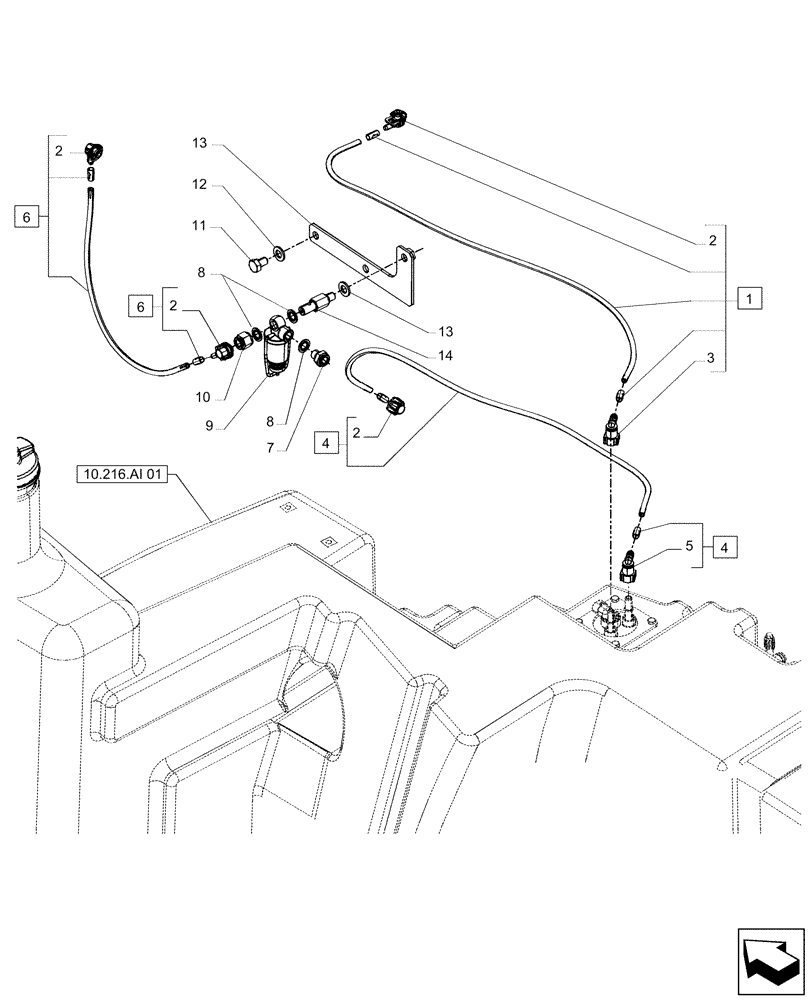

Запчасти Case IH PUMA 215 (10.216.BA) - FUEL LINES (10) - ENGINE

1

82028475

FUEL TUBE,8mm OD X 960 mm

Incl 2, 3

1шт.

2

82028482

FITTING

4шт.

3

82028480

COUPLING, QUICK, FEM

1шт.

4

87696294

FUEL HOSE,6mm ID x 920mm L

Incl 2, 5

1шт.

5

82028479

FITTING

1шт.

6

87591975

TUBE,8 mm OD x 550 mm L

Incl 2

1шт.

7

4893833

HYD CONNECTOR

1шт.

8

87590622

SEALING WASHER,14.7mm ID x 22mm OD x 1.5mm Thk

3шт.

9

87592298

FILTER ASSY

1шт.

10

87585673

HYD CONNECTOR

1шт.

11

11112121

SCREW,Hex, M12 x 20mm, Cl 8.8, Full Thd

2шт.

12

14496701

WASHER,13.00mm ID x 24.00mm OD x 2.50mm, CST, ZND

3шт.

13

87591419

HOLDER

1шт.

14

87585662

HYD CONNECTOR,M12 x 1.75 x M14 x 1.5

1шт.
