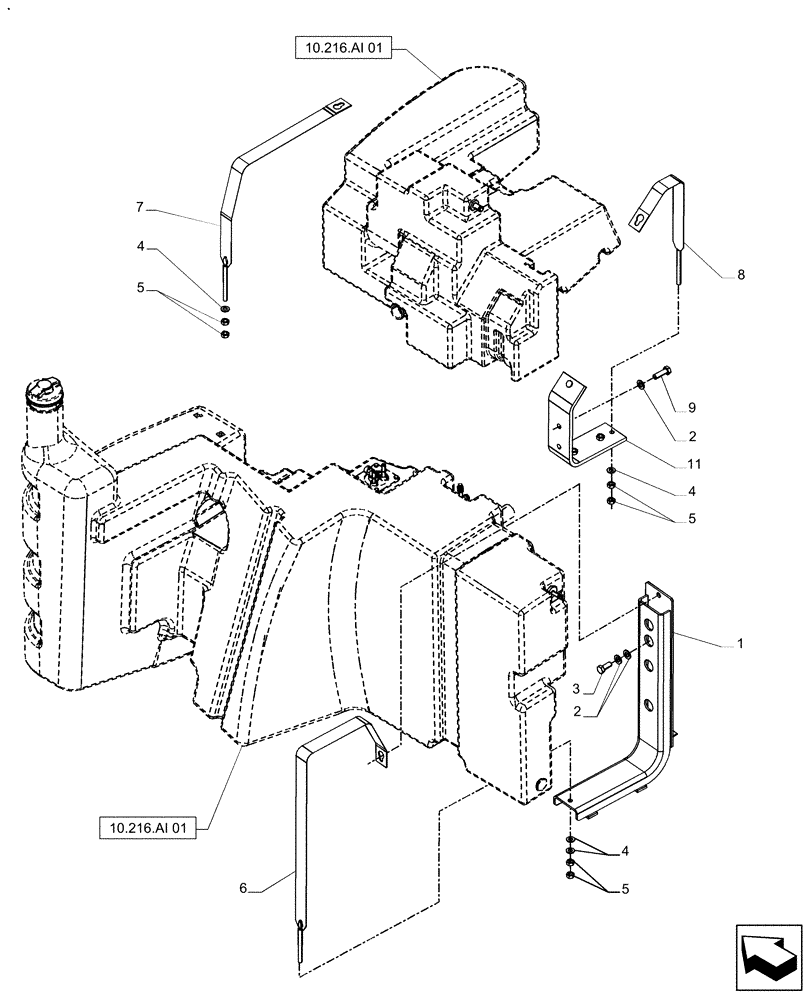

Запчасти Case IH PUMA 215 (10.216.AI[02]) - MAIN FUEL TANK SUPPORT (10) - ENGINE

1

87519071

HOLDER

1шт.

2

14496704

WASHER,13mm ID x 24mm OD x 2.5mm Thk

4шт.

3

15540424

SCREW,Hex, M12 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

4

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

4шт.

5

11701711

NUT,Hex, M10, Cl 8, ZND

6шт.

6

87495535

SECURING STRAP

1шт.

7

87574100

SECURING STRAP

1шт.

8

87327086

SECURING STRAP

1шт.

9

11112821

BOLT,Hex, M12 x 40mm, Cl 8.8, Full Thd

2шт.

10

14496701

WASHER,13.00mm ID x 24.00mm OD x 2.50mm, CST, ZND

2шт.

11

87519056

HOLDER

1шт.
