Запчасти Case IH PUMA 215 (05.100.01) - DEALER INITIAL STOCKING LIST "A" (ISL) (05) - SERVICE & MAINTENANCE

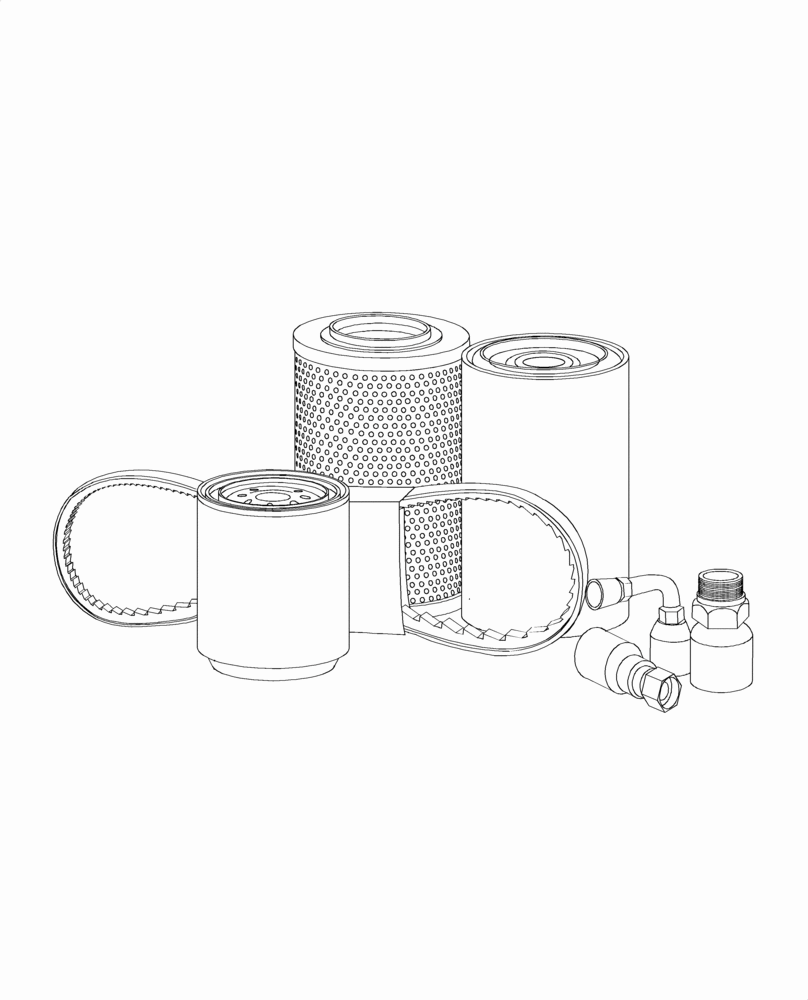

Схема запчастей Case IH PUMA 215 - (05.100.01) - DEALER INITIAL STOCKING LIST "A" (ISL) (05) - SERVICE & MAINTENANCE

Артикул

Название

Примечание

Количество

1

84278636

FUEL FILTER,96.2mm OD x 183mm L, M16x1.5 - 6H, W/ WIF Sensor (M14)

1шт.

2

84412164

FUEL FILTER,94mm OD x 192mm L, M20 x 1.5, 10 Microns

1шт.

3

87301964

V-BELT,35.40 mm W x 2562.00 mm L

1шт.

4

87517153

AIR FILTER,142.3mm ID x 150.9mm OD x 258mm L

1шт.

5

87517154

AIR FILTER,281.6mm ID x 284.4mm OD x 319mm L

1шт.

6

84328598

FUEL FILTER,40mm OD x 109mm L, M14 x 1.5, 350 Microns

1шт.

7

87300105

V-BELT,14.04 mm W x 968.00 mm L

1шт.

8

84226263

HYDRAULIC OIL FILTER,116.8mm OD x 295.4mm L, 1" 3/8-12UNF

1шт.

9

87708150

HYDRAULIC OIL FILTER,Filter & Seal

1шт.

10

47863571

AIR FILTER

2шт.

11

2854743

ENGINE OIL FILTER,93.5mm OD x 173mm L, M27 x 2

1шт.

Выбрано товаров: 11
