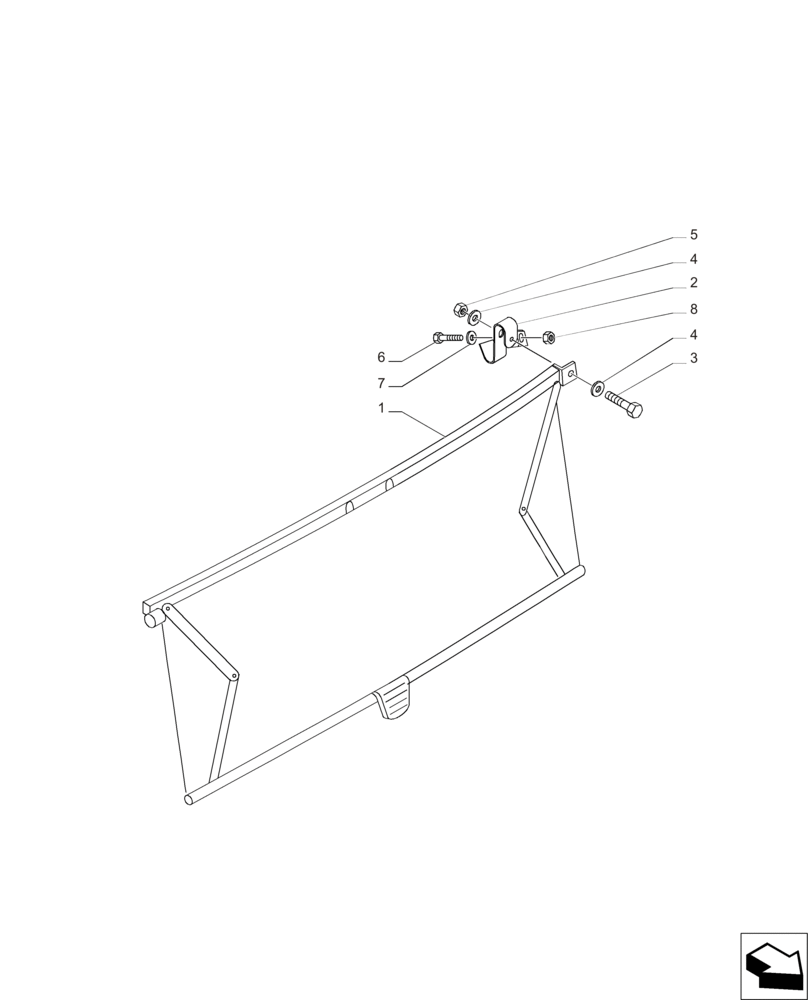

Запчасти Case IH PUMA 215 (90.151.AE) - REAR SUN CURTAIN (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

82034578

CURTAIN,366.4mm x 1059mm

1шт.

2

82038539

BRACKET

1шт.

2

82038537

BRACKET

1шт.

3

86977789

BOLT,Hex, M6 x 1.0 x 35mm, Cl 8.8

2шт.

4

9824259

WASHER,6.4mm ID x 12mm OD x 1.6mm Thk

4шт.

5

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

2шт.

6

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

7

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

8

43362

NUT,M8 x 1.25, Cl 10

2шт.
