Запчасти Case IH PUMA 215 (90.150.BG[03]) - AUTO GUIDANCE SYSTEM READY - RECEIVER SUPPORT (90) - PLATFORM, CAB, BODYWORK AND DECALS

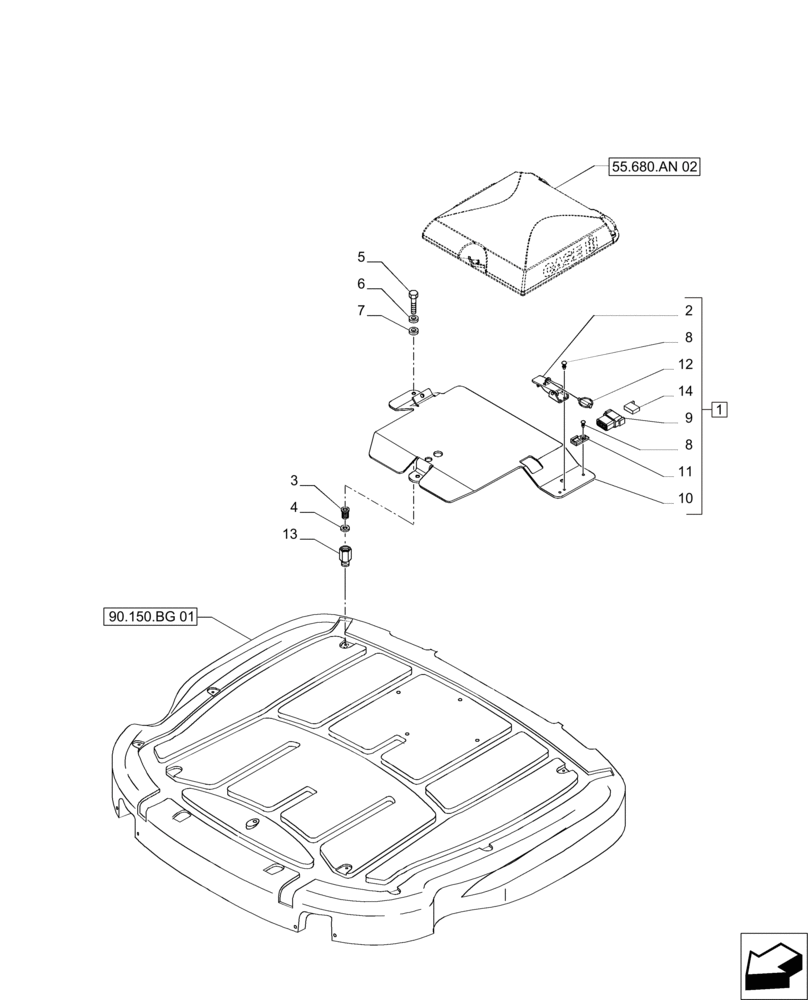

Схема запчастей Case IH PUMA 215 - (90.150.BG[03]) - AUTO GUIDANCE SYSTEM READY - RECEIVER SUPPORT (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.150.bg 01
6
8
55.680.an 02
10
5
14
13
12
9
11
2
1
8
4
7
3

Артикул

Название

Примечание

Количество

1

87634999

SUPPORT

1шт.

2

87308870

LATCH

1шт.

3

87652569

INSERT,M6 x 14 mm L

3шт.

4

81869856

WASHER,6mm ID x 17mm OD

3шт.

5

10902434

SCREW,Hex, M6 x 20mm, Cl 10.9, Full Thd

3шт.

6

12647607

WASHER,6.15mm ID x 16mm OD x 2mm Thk

3шт.

7

10615479

LOCK WASHER,6.4mm ID x 11mm OD x 0.7mm Thk

3шт.

8

87308841

RIVET,Pop, 3.97mm OD x 10.79mm L

3шт.

9

87641584

MULTIPOLE CONNECTOR,12 Pole

1шт.

10

87634998

SUPPORT

1шт.

11

87641585

MOUNTING PARTS

1шт.

12

87109290

LOCK PIN,25.4mm OD x 30mm L

1шт.

13

82034114

SPACER,M6 x 25mm L

3шт.

14

87648972

WEDGE,Lock, Orange

1шт.

Выбрано товаров: 14
