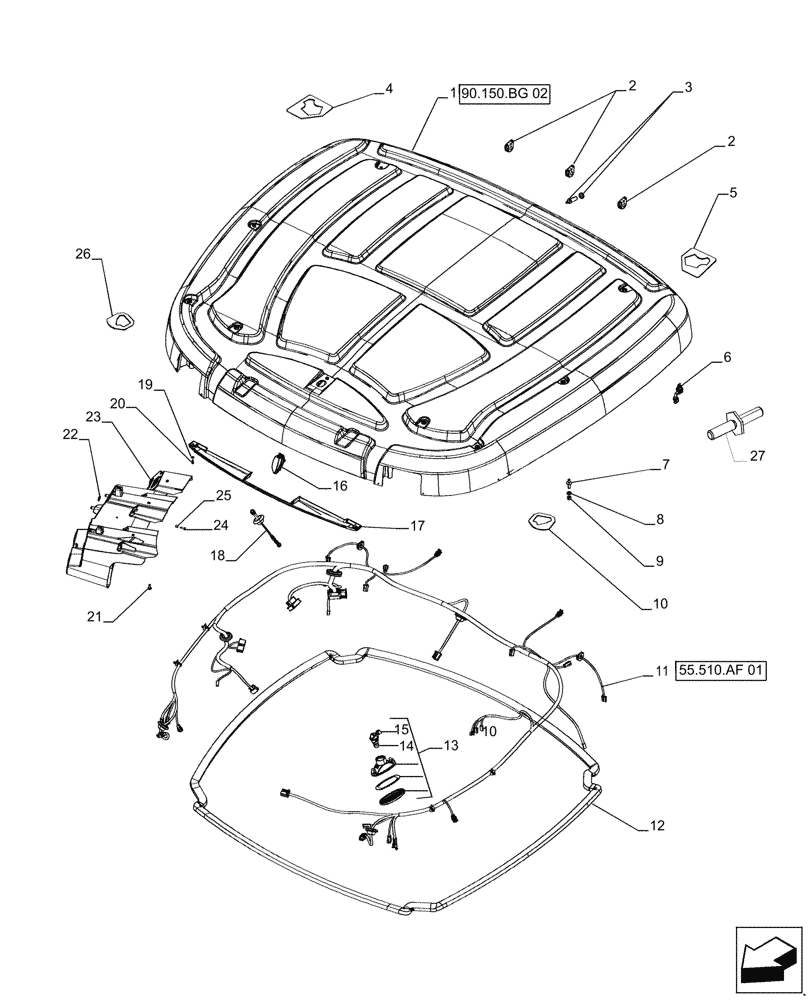

Запчасти Case IH PUMA 215 (90.150.BG[01]) - EEAA ROOF WITH HIGH PROFILE LESS HIGH VISIBILITY PANEL - ROOF (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47467350

ROOF

1шт.

2

87537655

GROMMET,14mm ID x 36mm OD, Rubber, Black

3шт.

3

82030999

JET

1шт.

4

82038033

GASKET,10mm Thk

1шт.

5

82038034

INSULATION

1шт.

6

84191453

SOCKET,12/24V, 20A

2шт.

7

47850718

STUD

4шт.

8

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

9

16104511

NUT,M8 x 1.25, Cl 8.8

4шт.

10

82025910

GASKET,10 Thk, Black

1шт.

11

47372235

WIRE HARNESS

1шт.

12

47467341

SEAL,30mm W x 15mm Thk x 5000mm L

1шт.

13

87301963

CEILING LAMP,12V

1шт.

14

14149590

BULB,12V, 10W

1шт.

15

87304554

HOLDER

1шт.

16

84555809

HOLDER

1шт.

17

87570853

COVER

1шт.

18

47415493

CABLE,850mm L

1шт.

19

14496307

WASHER,5.3mm ID x 10mm OD x 1mm Thk

6шт.

20

84187830

SCREW,Torx, Pan HD, M4.2 x 1.4 x 13mm

6шт.

21

81853129

SCREW,Pozidriv Pan Hd, M6 x 16mm, Cl 4.8, Full Thd

5шт.

22

14369071

SPRING NUT,4.8mm x 14.6mm x 4mm

5шт.

23

47718244

1шт.

24

15903904

SCREW,Pan Hd, M4.8 x 1.6 x 19mm

5шт.

25

47378854

SPACER,5mm ID x 8mm OD x 7.5mm L

5шт.

26

82023417

GASKET,10mm Thk, Black

1шт.

27

47980345

THREADED ROD

4шт.
