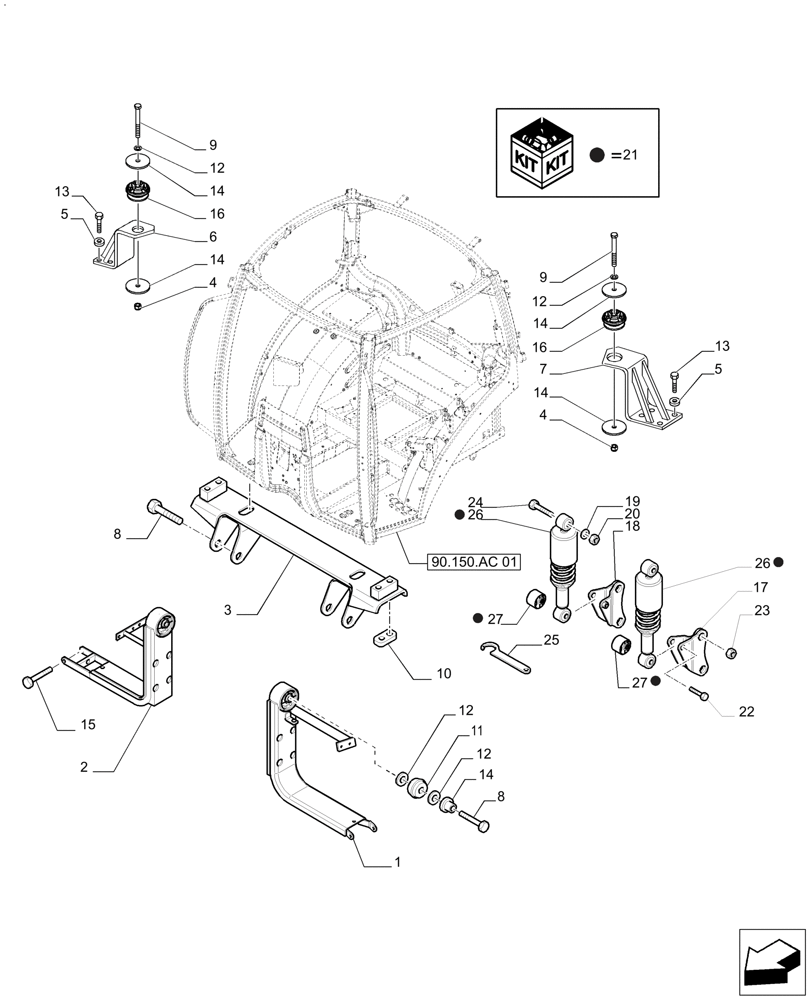

Запчасти Case IH PUMA 215 (90.150.BB) - CAB SUPPORTS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47979483

SUPPORT

LH

1шт.

2

47979487

SUPPORT

RH

1шт.

3

87553298

SUPPORT

1шт.

4

12575111

LOCK NUT,M20 x 1.5, Cl 8

2шт.

5

10520324

WASHER,18.4mm ID x 32mm OD x 4mm Thk

8шт.

6

82035565

SUPPORT

Rear, RH

1шт.

7

82035563

SUPPORT

Rear, LH

1шт.

8

87335549

BOLT,Hex, M20 x 150mm, Cl 8.8

4шт.

9

15990721

BOLT,Hex, M20 x 1.5 x 180mm, Cl 8.8

2шт.

10

87597203

SPECIAL NUT

2шт.

11

47979490

RUBBER INSULATOR,100MM OD X 85.3MM L

2шт.

12

14497101

WASHER,M20 x 37 x 3

4шт.

13

15239624

BOLT,Hex, M18 x 1.5 x 65mm, Cl 8.8

8шт.

14

87302042

SPACER,21mm ID x 120mm OD x 8.7mm L

4шт.

15

11408324

BOLT,Hex, M14 x 1.5 x 35, 8.8, Full Thd

8шт.

16

83983548

ISOLATOR,120mm OD x 64mm L

2шт.

17

87319866

SUPPORT

LH

1шт.

18

87319773

SUPPORT

RH

1шт.

19

12646001

WASHER,14.4mm ID x 24mm OD x 2mm Thk

6шт.

20

12577311

LOCK NUT,Prevailing Torque, M14 x 2.0 x 16.6mm, Cl8, ZND

2шт.

21

84183933

SERVICE KIT

Incl 26, 27

1шт.

22

86518210

BOLT,Hex, M14 x 75mm, Cl 8.8

2шт.

23

84134918

FLANGE NUT,Hex, M16 x 1.5

4шт.

24

11117021

BOLT,Hex, M14 x 90, 8.8

2шт.

25

82034842

SPECIAL WRENCH

1шт.

26

84183931

SHOCK ABSORBER

2шт.

27

84183930

ISOLATOR

2шт.
