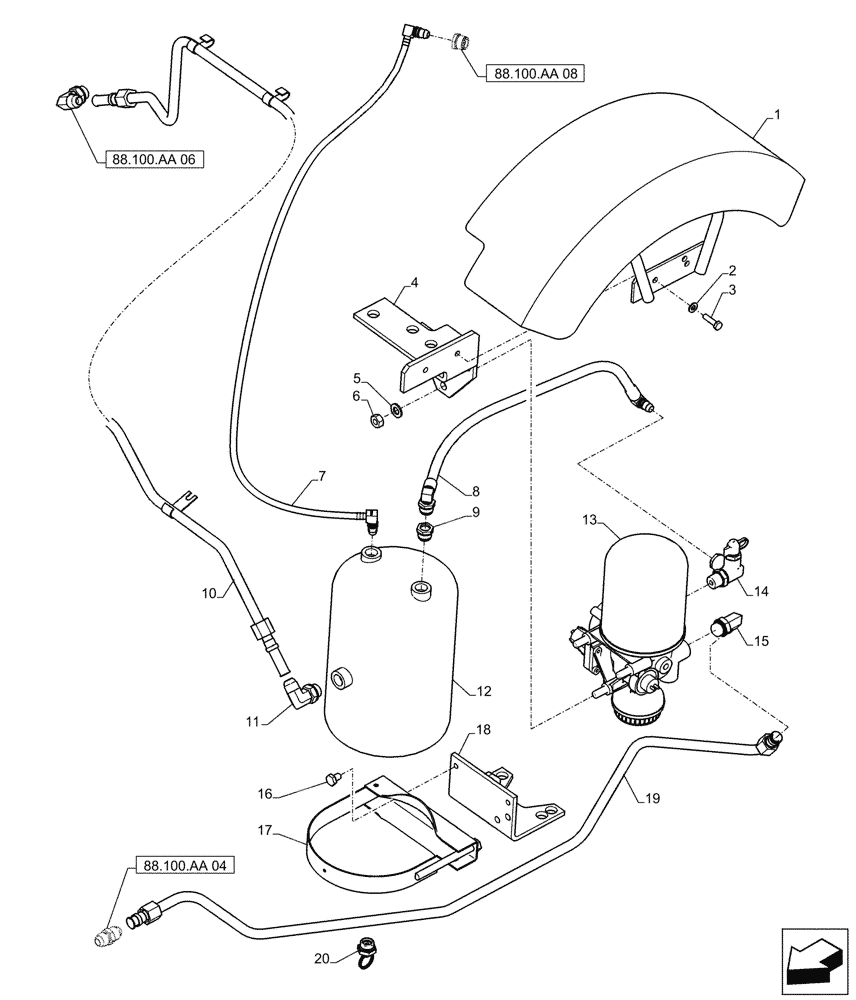

Запчасти Case IH PUMA 215 (88.100.AA[05]) - DIA KIT, TRAILER BRAKES (88) - ACCESSORIES

1

47426129

1шт.

2

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

8шт.

3

16043821

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

4

87667107

BRACKET

1шт.

5

14496701

WASHER,13.00mm ID x 24.00mm OD x 2.50mm, CST, ZND

3шт.

6

11702911

NUT,M12, Cl 8, ZND

3шт.

7

87519551

BRAKE LINE,7.5 mm ID x 10 mm OD x 1600 mm L

1шт.

8

84374873

TUBE

1шт.

9

82036156

FITTING,M22 x 1.5 x NG12

2шт.

10

87542572

RIGID TUBE,13 mm ID x 1015.6, 387.5 mm L

1шт.

11

82003206

ELBOW,90 Deg, 7/8-14 x M22 x 1.5 ORB

4шт.

12

82020479

AIR RESERVOIR

1шт.

13

47579727

RECEIVER-DRYER

1шт.

14

87345151

HYD CONNECTOR,M22 x 1.5

1шт.

15

82003206

ELBOW,90 Deg, 7/8-14 x M22 x 1.5 ORB

4шт.

16

10979224

BOLT,Hex, M10 x 16mm, Cl 8.8, Full Thd

4шт.

17

82038450

CLAMP

2шт.

18

82011500

2шт.

19

87381531

BRAKE LINE

1шт.

20

82004266

DRAIN

2шт.
