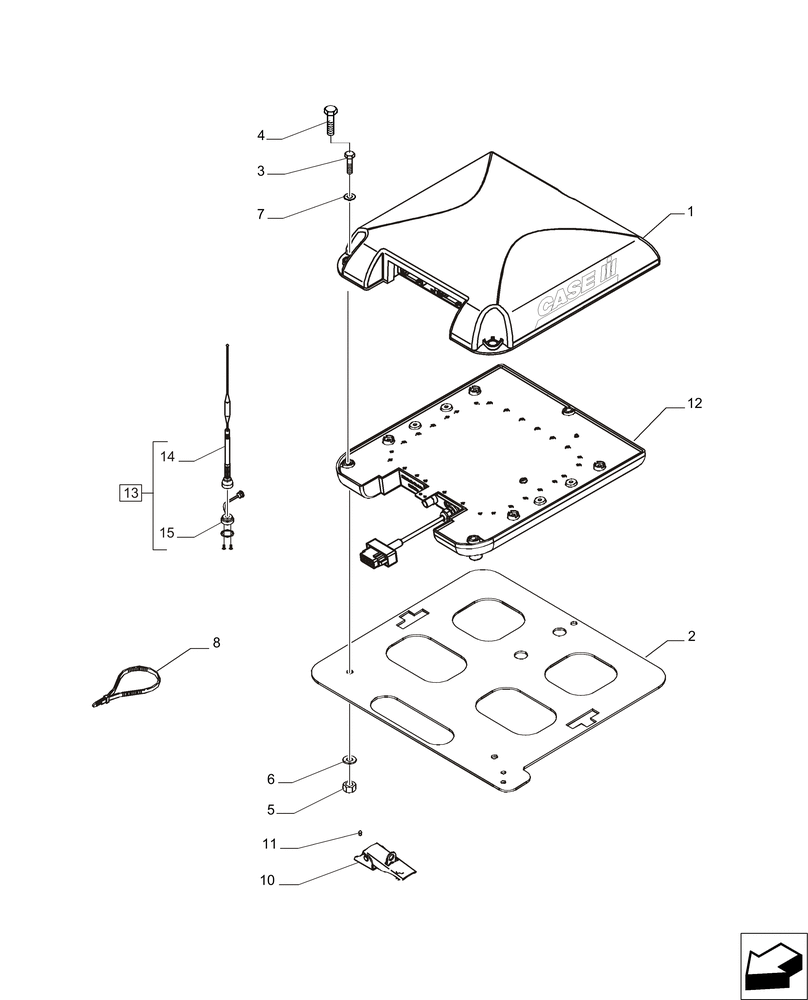

Запчасти Case IH PUMA 215 (55.680.AN[01]) - GPS RECEIVER & MOUNTING (55) - ELECTRICAL SYSTEMS

1

84272807

MODULE

1шт.

2

87496985

MOUNTING PLATE

1шт.

3

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

3шт.

4

338413

BOLT,Hex, M6 x 60mm, Cl 8.8

3шт.

5

86511444

FLANGE NUT,Hex, M6 x 1

3шт.

6

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

3шт.

7

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

3шт.

8

86991009

CABLE TIE,222mm L, Nylon

2шт.

10

87308870

LATCH

1шт.

11

87308841

RIVET,Pop, 3.97mm OD x 10.79mm L

2шт.

12

87678337

1шт.

13

87678334

KIT

Incl 14, 15

1шт.

14

87678328

ANTENNA

1шт.

15

87673543

BRACKET

1шт.
