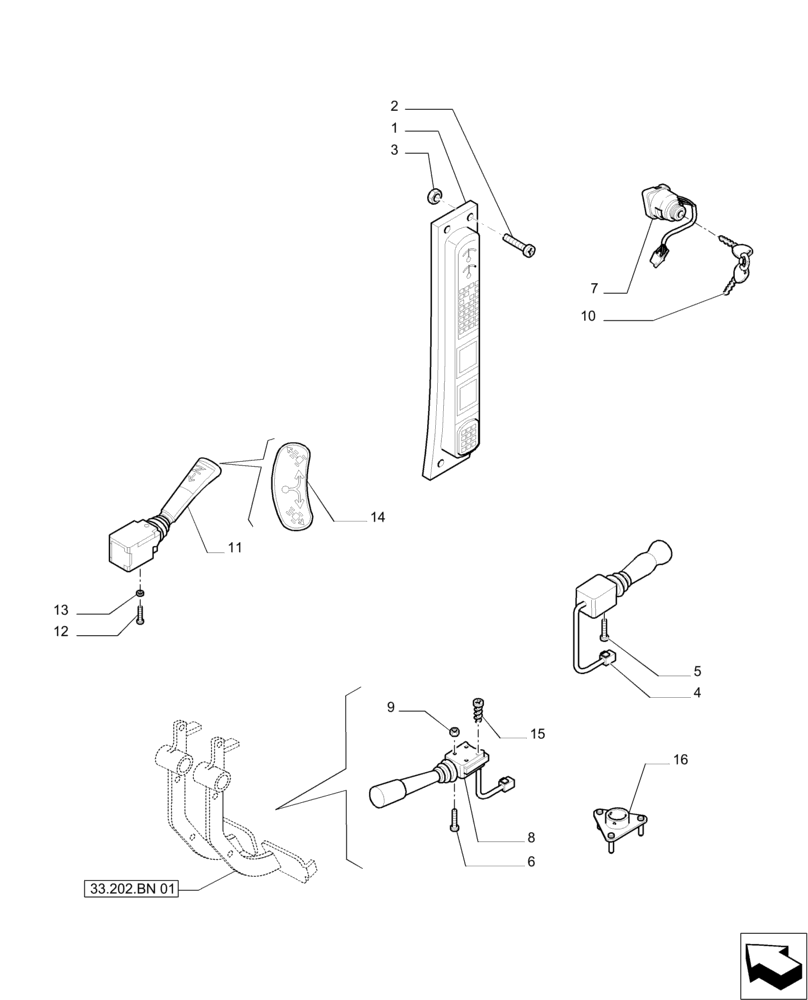

Запчасти Case IH PUMA 215 (55.512.BY[01]) - INSTRUMENT CLUSTER - ANALOGUE/DIGITAL AND SWITCH TOGGLE (55) - ELECTRICAL SYSTEMS

1

84529983

CLUSTER

ENH

1шт.

2

87497921

SELF-TAP SCREW,Phillips Drive, Pan HD, M1.2 x 1.4 x 22mm

4шт.

3

83935425

SPRING NUT,Prev Torque, #8

4шт.

4

84288425

SWITCH

1шт.

5

15643001

SCREW,Pozidriv Pan Hd, M3.5 x 1.3 x 25mm

3шт.

6

83949904

SCREW,Pan, M4 x 10mm, Gr 4.8

3шт.

7

87561528

SWITCH ASSY

1шт.

8

87733123

SWITCH ASSY

1шт.

9

10794011

NUT,M4, Cl 8

3шт.

10

82030144

IGNITION KEY

2шт.

11

87472289

LEVER

1шт.

12

82880809

SCREW,Pan, M4 x 8mm, Gr 4.8

3шт.

13

10615279

LOCK WASHER,M4, Serr

1шт.

14

84178416

DECAL

1шт.

15

15687201

SELF-TAP SCREW,Cross Pan Hd, M3.5 x 13mm

3шт.

16

87678850

ACTUATOR

1шт.
