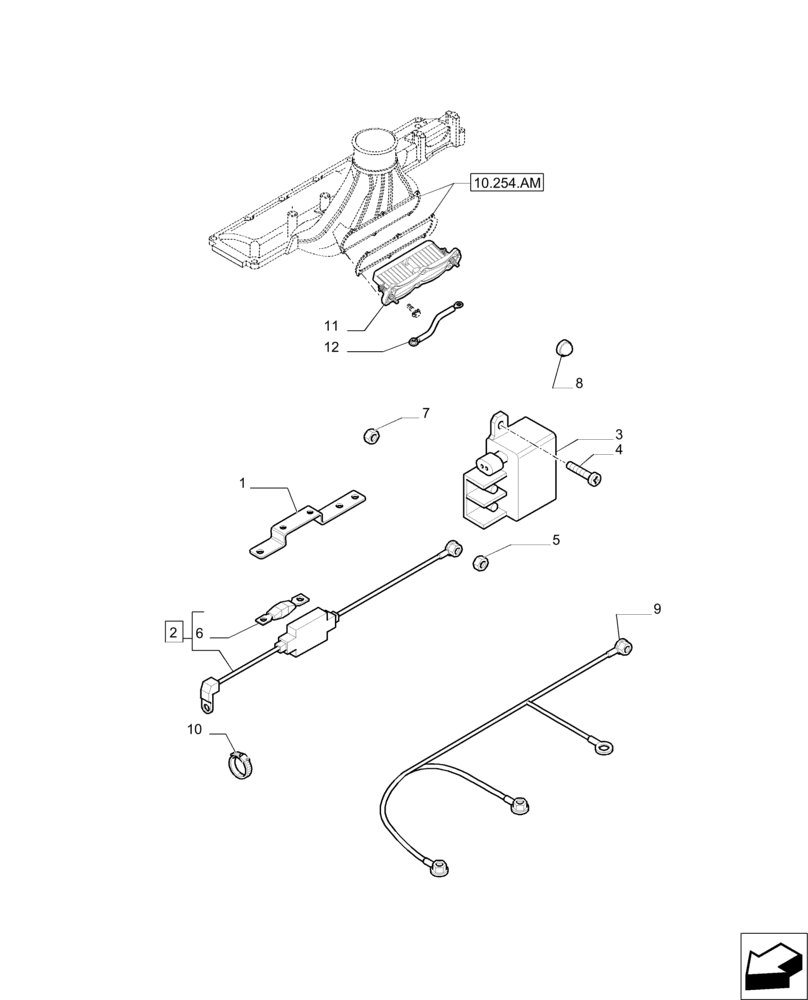

Запчасти Case IH PUMA 215 (55.202.AA) - GRID HEATER - ELECTRIC SYSTEM (55) - ELECTRICAL SYSTEMS

1

87570805

BRACKET

1шт.

2

84243701

WIRE HARNESS

Incl 6

1шт.

3

82022813

RELAY,12V, High Current

1шт.

4

83998908

SCREW,Pozidriv Pan Hd, M6 x 12mm, Cl 4.8, Full Thd

2шт.

5

12574211

NUT,M6 x 1, Cl 8

2шт.

6

11056290

FUSE,125A, Maxi

1шт.

7

15896211

NUT,M6, Cl 8

1шт.

8

87533425

COVER,M6

4шт.

9

82036464

ELECTRIC CABLE,650mm L

1шт.

10

82001041

CABLE TIE,0.190" x 7.00" / 200 mm L

2шт.

11

2854837

HEATER

1шт.

12

87316233

ELECTRIC CABLE

1шт.
