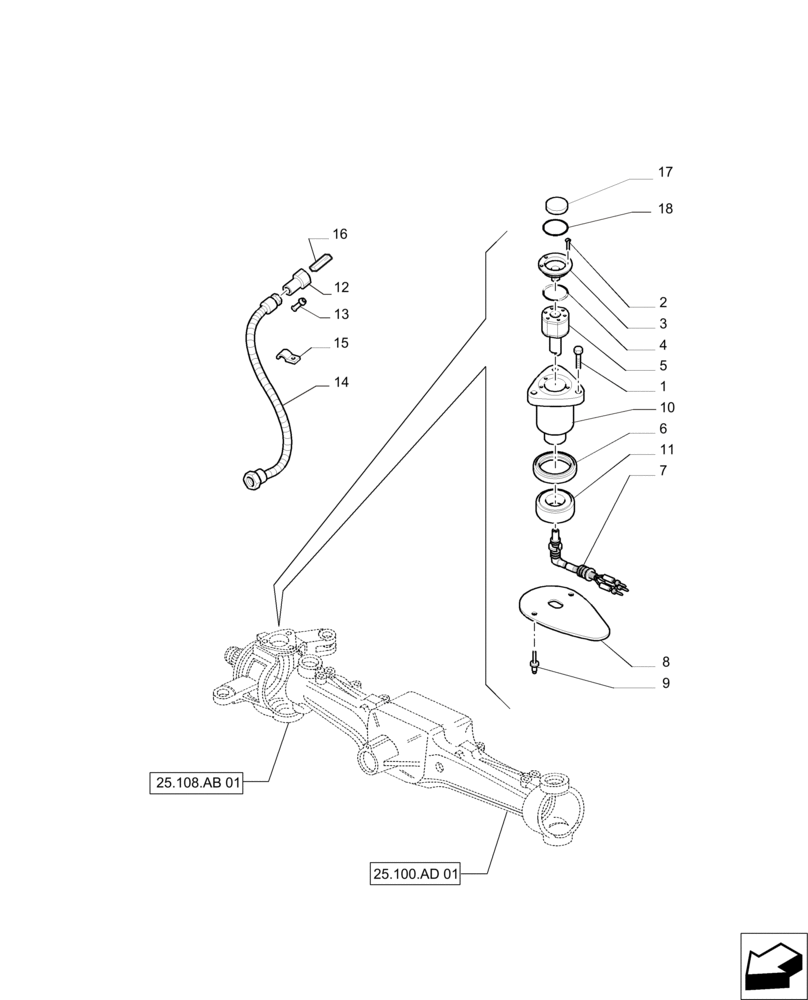

Запчасти Case IH PUMA 215 (55.047.AA[02]) - FRONT AXLE STEERING SENSOR AND RELATED PARTS - CANE VERSION (55) - ELECTRICAL SYSTEMS

1

14254434

SCREW,Hex, M14 x 1.5 x 30mm, Cl 10.9, Full Thd

12шт.

2

13299218

SCREW,Pozidriv Flat Hd, Csk, M5 x 12mm, Cl 5.8

3шт.

3

84384510

TOP

1шт.

4

14458280

O-RING,31.42mm ID x 2.62mm

1шт.

5

87627614

SENSOR

1шт.

6

47137701

SEAL,70mm ID x 90mm OD x 10mm Thk

1шт.

7

84160560

ELECTRIC CABLE

1шт.

8

87315098

SHIELD

1шт.

9

130074

RIVET

2шт.

10

87345372

BALL STUD

BALL PIN

1шт.

11

47137676

SPH ROLLER BEARING,40mm ID x 80mm OD x 24.75mm W

1шт.

12

82918426

ELEC CONNECTOR,Female

1шт.

13

82918419

PLUG

1шт.

14

82016109

FLEXIBLE SHEATH

1шт.

15

10441490

COLLAR,14mm, Coat, 7mm Bolt Hole, P Type

1шт.

16

82918451

SPACER

1шт.

17

10305111

PLUG,M22 x 1.5 x 21, Cl5.8

1шт.

18

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

1шт.
