(55.020.AB[01]) - GEARBOX HOUSING SENSORS AND SWITCHES

Запчасти Case IH PUMA 215 (55.020.AB[01]) - GEARBOX HOUSING SENSORS AND SWITCHES (55) - ELECTRICAL SYSTEMS

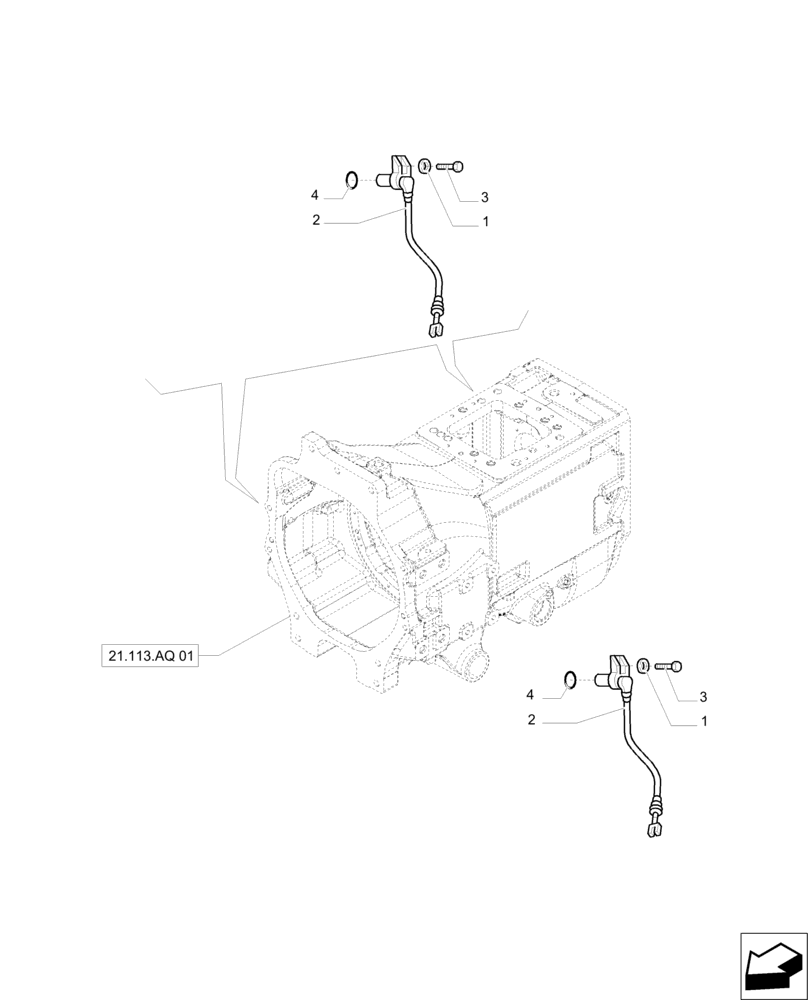

Схема запчастей Case IH PUMA 215 - (55.020.AB[01]) - GEARBOX HOUSING SENSORS AND SWITCHES (55) - ELECTRICAL SYSTEMS
1
4
3
2
2
3
1
21.113.aq 01
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

10615476

LOCK WASHER,Ext Tooth, M6

3шт.

2

47766973

SENSOR

3шт.

3

14305224

HEX SOC SCREW,M6 x 16mm, Cl 8.8, Full Thd

3шт.

4

47136259

O-RING,3mm Thk x 17.2mm ID, 72 Duro

3шт.
