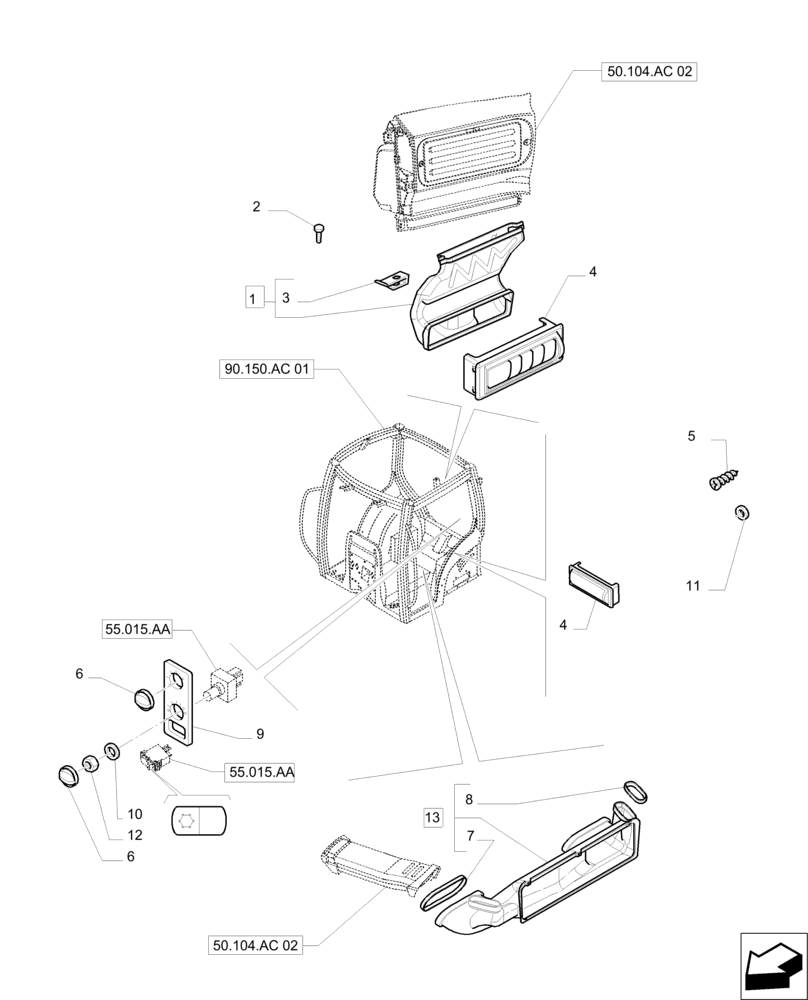

Запчасти Case IH PUMA 215 (50.104.AC[01]) - HEATING/AIR CONDITIONING - VENTILATION DUCTS (50) - CAB CLIMATE CONTROL

1

87614773

AIR DUCT

Incl 3

1шт.

2

82023989

CAPTIVE WASHER SCREW,Cross Pan Hd, #8 - 18 x 0.75", Type AB Thd Forming Pt

13шт.

3

87567755

SPRING NUT,M5

2шт.

4

87568777

VENT

2шт.

5

84187815

SCREW,Pan Hd, M5.5 x 1.8 x 19mm

2шт.

6

87699601

KNOB

2шт.

7

82034490

SEAL

2шт.

8

82033452

SEAL

2шт.

9

87698075

DECAL

1шт.

10

9715503

LOCK WASHER,Ext Tooth, 7/16"

1шт.

11

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

2шт.

12

83905114

NUT

1шт.

13

87311195

AIR DUCT

Incl 7, 8

1шт.
